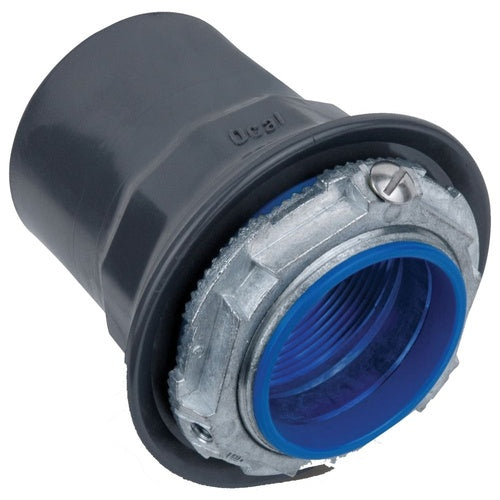

Ocal STG11-G PVC Coated Zinc Ground Hub 5" Dark-Gray

Overview

Ocal STG11-G PVC Coated Zinc Ground Hub 5" Dark-Gray

Product Specifications

• UPC: 70450840878
• Material: Dark Gray PVC Coated Zinc Hub, Nitrile Buna-N Sealing Ring
• Approval: UL 94
• Used On: Rigid Conduit
• Additional Information: Maximum Panel Thickness 1/4 Inch; Temperature Rating 105 Deg C
• Catalog Number: STG11-G
• Model: STG
• Type: Threaded
• Throat Type: Thermoplastic Insulated
• Trade Size: 5 Inch
• Size: 6.88 Inch Dia x 3.03 Inch L
• Constructional Feature: Corrosion Resistant
• Ground Type: Locknut Bonding/Grounding Screw
• Catalog Description: PVC COATED ZINC GROUNDED HUB WITH THERMOPLASTIC INSULATED THROAT, PIPE SIZE 5 INCH/129 METRIC, OVERALL DIAMETER 6.88 INCH/174.75 MILLIMETERS, MAXIMUM PANEL THICKNESS 0.25 INCH/6.35 MILLIMETERS, THROAT DIAMETER 4.94 INCH/125.48 MILLIMETERS, NITRILE RUBBER (BUNA-N) SEALING RING, DARK GRAY
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Threaded Type; Dark Gray PVC Coated Zinc Hub, Nitrile Buna-N Sealing Ring Material; 6.88 Inch Dia X 3.03 Inch L Size; Rigid Conduit Used on; UL 94 Approval; Locknut Bonding/Grounding Screw; 5 Inch Trade Size; Corrosion Resistant; Thermoplastic Insulated Throat Type; OCAL-BLUE[R] Brand; Maximum Panel Thickness 1/4 Inch; Temperature Rating 105 Deg C; STG Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 704508408787
• SKU Name: ocal stg11g
