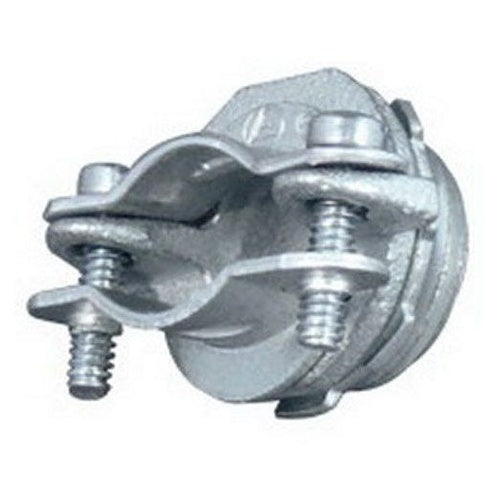

Catalog Description: OZ-GEDNEY TYPE 900 NON-WATERTIGHT CONNECTOR, SIZE: 1-1/4 IN, CONNECTION: MALE NPS HUB X SET SCREW, CONDUCTOR RANGE: 0.73 - 1.34 IN, MALLEABLE IRON, FINISH: ZINC ELECTROPLATED, DIMENSIONS: 2-7/8 IN DIAMETER X 1.34 IN WIDTH, 13/16 IN THREAD LENGTH, 9/16 IN HUB TURNING, THIRD PARTY CERTIFICATION: UL FILE NUMBER E-11856 (SE CABLES), UL FILE NUMBER E-11858 (NM AND SE CABLES), APPLICABLE THIRD PARTY STANDARDS: UL 514B, FEDERAL SPECIFICATION W-F-406E, FOR SECURING SEU AND OTHER ROUND NON-METALLIC CABLES TO BOXES AND ENCLOSURES IN DRY LOCATIONS
Category: Non-Metallic Cable Cable Fittings
Full Technical Description: Zinc Plated Malleable Iron Material; 2 Screw Clamp Installation; Non-Metallic Sheathed Cable/Armored Cable/Flexible Cable/Metal Clad Cable Cable Type; 0.75 to 1.34 Inch Cable Size; UL 514B, CSA C22.2 Approval; 1-1/4 Inch Trade Size; Insulated Throat Type; Includes Locknut; Clamping Range 0.75 to 1.34 Inch; Overall Dimension 2-7/16 Inch W X 22/16 Inch H; 907 Model
Manufacturer: O-Z Gedney
Manufacturer Brand: O-Z Gedney
Sub Category: Nonmetallic Sheathed Cable Connector
