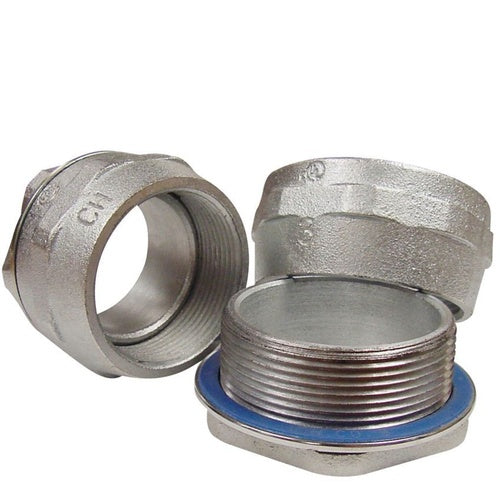

OZ-Gedney CH-75T 3/4" Malleable KO Hub

Overview

OZ-Gedney CH-75T 3/4" Malleable KO Hub

Product Specifications

• UPC: 78312609258
• Material: Zinc Plated Malleable Iron Body, Neoprene O-ring
• Approval: UL 514B, CSA C22.2
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard W-F-408E
• Catalog Number: CH-75T
• Model: CH-T
• Type: Tapered Female Threaded
• Throat Type: Insulated
• Trade Size: 3/4 Inch
• Size: 1-5/8 Inch Dia x 1-1/4 Inch L
• Constructional Feature: Watertight
• Ground Type: Bonding Screw
• Catalog Description: OZ-GEDNEY TYPE CHT SPACE-MAKER CONDUIT HUB, SIZE: 3/4 IN, MALLEABLE IRON, FINISH: ZINC PLATED, CONNECTION: 3/4-14 FEMALE TAPERED NPSM, DIMENSIONS: 1-5/8 IN DIAMETER X 1-1/4 IN LENGTH, BOX WALL THICKNESS: 3/32 IN, THIRD PARTY CERTIFICATION: UL FILE
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Tapered Female Threaded Type; Zinc Plated Malleable Iron Body, Neoprene O-ring Material; 1-5/8 Inch Dia X 1-1/4 Inch L Size; Rigid Conduit/Imc Used on; UL 514B, CSA C22.2 Approval; Bonding Screw; 3/4 Inch Trade Size; Watertight; Insulated Throat Type; Applicable Standard W-F-408E; CH-T Model
• Manufacturer: O-Z Gedney
• Manufacturer Brand: O-Z Gedney
• Sub Category: Rigid/Emt Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 783126092585
• SKU Name: ozg ch75t

Resources

• Manufacturer Spec Sheet
