Material: Zinc Plated Malleable Iron Body, Zinc Plated Steel Set Screw, Zinc Plated Steel Clamping Screw
Approval: UL 467, CSA C22.2
Used On: Rigid Conduit/IMC
Additional Information: Applicable Standard W-F-408E, NEMA FB-1; Temperature Rating 150 Deg C
Catalog Number: IBC-125LS-20AC
Model: IBC-LS-AC
Type: Threadless Set Screw
Trade Size: 1-1/4 Inch
Wire Size: 14 to 2/0 AWG
Lug Type: Lay-In, Tin Plated Aluminum
Conductor Material: Copper/Aluminum
Throat Type: Insulated

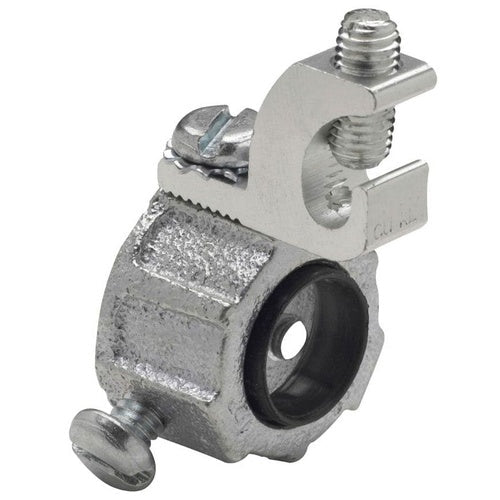

Catalog Description: OZ-GEDNEY TYPE IBC-LS-AC INSULATED GROUNDING BUSHING WITH LUG, SIZE: 1-1/4 IN, MALLEABLE IRON BODY, ALUMINUM LUG, STEEL CLAMPING SCREW AND SET SCREWS, FINISH: ZINC PLATED BODY, TIN PLATED LUG, ZINC PLATED CLAMPING SCREW AND SET SCREWS, CONNECTION: SET-SCREW, 150 DEG C, 14 - 2/0 AWG GROUNDING WIRE, 2-1/8 IN OUTSIDE DIAMETER, 5/8 IN WIDTH, 1-13/16 IN TURNING RADIUS WITH LUG, THIRD PARTY CERTIFICATION: UL FILE NUMBER E-24264, CSA 009795, APPLICABLE THIRD PARTY STANDARDS: UL 467, CSA C22.2 NO.41, FEDERAL SPECIFICATION W-F-408E, NEMA : FB-1, FOR RIGID CONDUIT AND IMC
Category: Rigid Conduit Fittings - Steel
Full Technical Description: Threadless Set Screw Type; Zinc Plated Malleable Iron Body, Zinc Plated Steel Set Screw, Zinc Plated Steel Clamping Screw Material; 5/8 Inch; Rigid Conduit/Imc Used on; 14 to 2/0 AWG Wire Size; Copper/Aluminum Conductor Material; UL 467, CSA C22.2 Approval; 2-1/8 Inch Diameter; 1-1/4 Inch Trade Size; Insulated Throat Type; Lay-in, Tin Plated Aluminum Lug Type; Applicable Standard W-F-408E, NEMA FB-1; Temperature Rating 150 Deg C; IBC-LS-AC Model
