Material: ZINC PLATED MALLEABLE IRON BODY, ZINC PLATED STEEL SET SCREW, ZINC PLATED STEEL CLAMPING SCREW
Approval: UL 467, CSA 22.2
Used On: RIGID CONDUIT/IMC
Installation: THREADED
Additional Information: APPLICABLE STANDARD NEMA FB-1
Catalog Number: IBC-200L-20BC
Brand Name: Lay-In Lug[T]
Model: IBC-L-BC
Trade Size: 2 INCH
Wire Size: 14 TO 2/0 AWG
Lug Type: LAY IN, BRIGHT DIP BRONZE
Conductor Material: COPPER
Throat Type: INSULATED

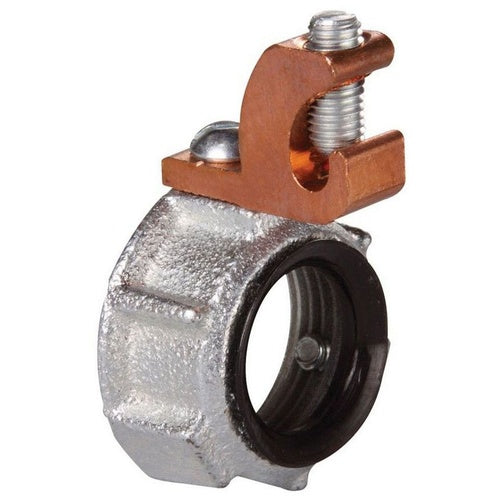

Catalog Description: OZ-GEDNEY TYPE IBC-L-BC INSULATED GROUNDING BUSHING WITH LUG, SIZE: 2 IN, MALLEABLE IRON BODY, BRONZE LUG, STEEL CLAMPING SCREW AND SET SCREWS, FINISH: ZINC PLATED BODY, BRIGHT DIP LUG, ZINC PLATED CLAMPING SCREW AND SET SCREWS, CONNECTION:
Category: Rigid Conduit Fittings - Steel
Full Technical Description: Threadless/Threaded Type; Zinc Plated Malleable Iron Material; 19.1 Inch; Threadless and Threaded RMC IMC Conductor Used on; 14 AWG Solid, 2 AWG Stranded Wire Size; Copper Conductor Material; UL Approval; 71.4 Inch Diameter; 2 Inch Trade Size; Insulated Throat Type; Lay-in Lug Type; Temperature Rating 150 Deg C
