Additional Information: Applicable Standard Federal Specification W-F-408E, NEMA FB-1; Application Used to Protect Wires and Cables at Entry and Exit of Conduit
Catalog Number: IBC-250
Model: IBC
Type: Threaded Female
Trade Size: 2-1/2 Inch
Diameter: 3-3/8 Inch
Height: 1 Inch
Throat Type: Thermoplastic Insulated
Temperature Rating: 150 Deg C

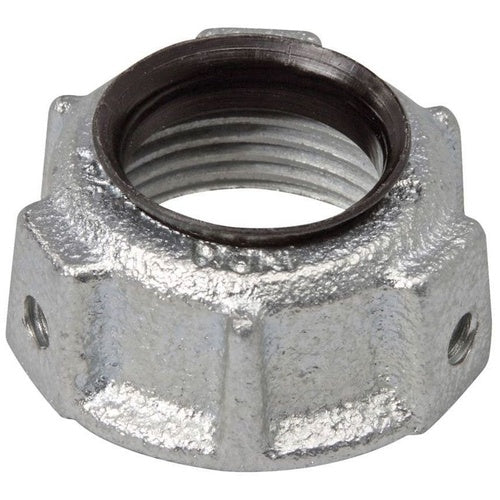

Catalog Description: OZ-GEDNEY TYPE IBC INSULATED BUSHING, SIZE: 2-1/2 IN, MALLEABLE IRON BODY, THERMOPLASTIC INSULATOR, FINISH: ZINC PLATED, CONNECTION: THREADED NPS, 150 DEG C, 3-3/8 IN OUTSIDE DIAMETER, 1 IN WIDTH, THIRD PARTY CERTIFICATION: UL FILE NUMBER E-11853, CSA 009795, APPLICABLE THIRD PARTY STANDARDS: UL 514B, CSA C22.2 NO.18, FEDERAL SPECIFICATION W-F-408E, NEMA : FB-1, FOR RIGID CONDUIT AND IMC
Category: Rigid Conduit Fittings - Steel
Full Technical Description: Threaded Female Type; Zinc Plated Malleable Iron Material; 1 Inch; Rigid Conduit/Imc Used on; UL 514B, CSA C22.2 Approval; 3-3/8 Inch Diameter; 150 Deg C Temperature Rating; 2-1/2 Inch Trade Size; Thermoplastic Insulated Throat Type; Applicable Standard Federal Specification W-F-408E, NEMA FB-1; Application Used to Protect Wires and Cables at Entry and Exit of Conduit; IBC Model
