Material: Zinc Plated Malleable Iron Body, Zinc Plated Steel Set Screw, Zinc Plated Steel Clamping Screw
Approval: UL 467, CSA C22.2
Used On: Rigid Conduit/IMC
Additional Information: Applicable Standard W-F-408E, NEMA FB-1; Temperature Rating 150 Deg C
Catalog Number: IBC-300L-4BC
Model: IBC-L-BC
Type: Threaded, Set Screw
Trade Size: 3 Inch
Wire Size: 14 to 4 AWG
Lug Type: Lay-In, Bright Dip Bronze
Conductor Material: Copper
Throat Type: Insulated

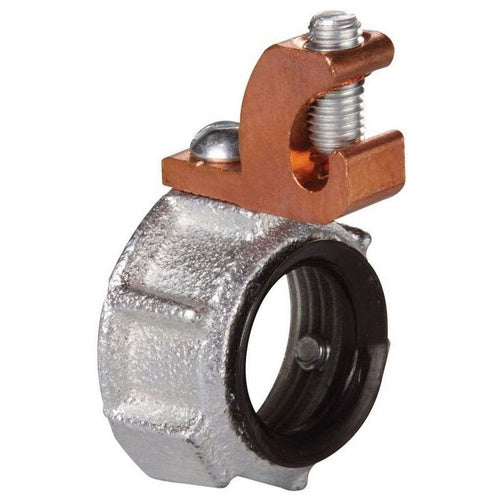

Catalog Description: OZ-GEDNEY TYPE IBC-L-BC INSULATED GROUNDING BUSHING WITH LUG, SIZE: 3 IN, MALLEABLE IRON BODY, BRONZE LUG, STEEL CLAMPING SCREW AND SET SCREWS, FINISH: ZINC PLATED BODY, BRIGHT DIP LUG, ZINC PLATED CLAMPING SCREW AND SET SCREWS, CONNECTION: THREADED, 150 DEG C, 14 - 4 AWG GROUNDING WIRE, 4-1/16 IN OUTSIDE DIAMETER, 1-5/16 IN WIDTH, 2-5/8 IN TURNING RADIUS WITH LUG, THIRD PARTY CERTIFICATION: UL FILE NUMBER E-24264, CSA 009795, APPLICABLE THIRD PARTY STANDARDS: UL 467, CSA C22.2 NO.41, FEDERAL SPECIFICATION W-F-408E, NEMA : FB-1, FOR RIGID CONDUIT AND IMC
Category: Rigid Conduit Fittings - Steel
Full Technical Description: Threaded, Set Screw Type; Zinc Plated Malleable Iron Body, Zinc Plated Steel Set Screw, Zinc Plated Steel Clamping Screw Material; 1-5/16 Inch; Rigid Conduit/Imc Used on; 14 to 4 AWG Wire Size; Copper Conductor Material; UL 467, CSA C22.2 Approval; 4-1/16 Inch Diameter; 3 Inch Trade Size; Insulated Throat Type; Lay-in, Bright Dip Bronze Lug Type; Applicable Standard W-F-408E, NEMA FB-1; Temperature Rating 150 Deg C; IBC-L-BC Model
