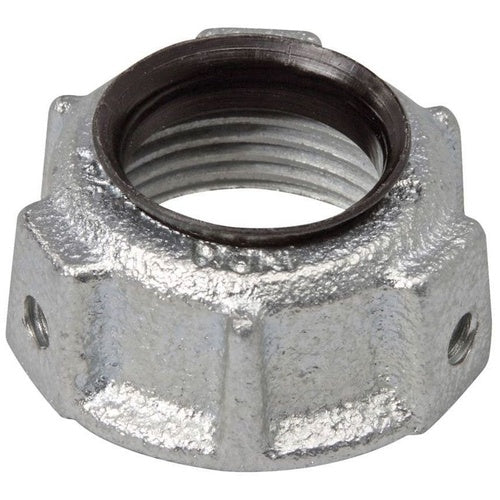

OZ-Gedney IBC-500 5" Malleable Insulated Bushing

Overview

OZ-Gedney IBC-500 5" Malleable Insulated Bushing

Product Specifications

• UPC: 78312630300
• Material: Zinc Plated Malleable Iron
• Approval: UL 514B, CSA C22.2
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-F-408E, NEMA FB-1; Application Used to Protect Wires and Cables at Entry and Exit of Conduit
• Catalog Number: IBC-500
• Model: IBC
• Type: Threaded Female
• Trade Size: 5 Inch
• Diameter: 6-1/6 Inch
• Height: 1-5/16 Inch
• Throat Type: Thermoplastic Insulated
• Temperature Rating: 150 Deg C
• Catalog Description: OZ-GEDNEY TYPE IBC INSULATED BUSHING, SIZE: 5 IN, MALLEABLE IRON BODY, THERMOPLASTIC INSULATOR, FINISH: ZINC PLATED, CONNECTION: THREADED NPS, 150 DEG C, 6-1/16 IN OUTSIDE DIAMETER, 1-5/16 IN WIDTH, THIRD PARTY CERTIFICATION: UL FILE NUMBER E-11853, CSA 009795, APPLICABLE THIRD PARTY STANDARDS: UL 514B, CSA C22.2 NO.18, FEDERAL SPECIFICATION W-F-408E, NEMA : FB-1, FOR RIGID CONDUIT AND IMC
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded Female Type; Zinc Plated Malleable Iron Material; 1-5/16 Inch; Rigid Conduit/Imc Used on; UL 514B, CSA C22.2 Approval; 6-1/6 Inch Diameter; 150 Deg C Temperature Rating; 5 Inch Trade Size; Thermoplastic Insulated Throat Type; Applicable Standard Federal Specification W-F-408E, NEMA FB-1; Application Used to Protect Wires and Cables at Entry and Exit of Conduit; IBC Model
• Manufacturer: O-Z Gedney
• Manufacturer Brand: O-Z Gedney
• Sub Category: Rigid/Emt Conduit Bushing
• Unspsc: 39121312
• UPC 12 Digit: 783126303001
• SKU Name: ozg ibc500
