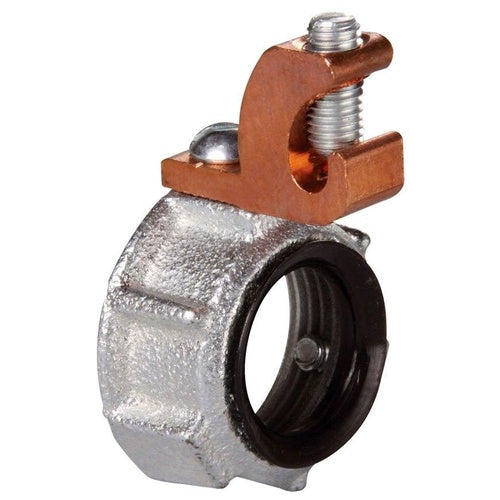

OZ-Gedney IBC-600L-20BC 6" Insulated Ground Bushing

Overview

OZ-Gedney IBC-600L-20BC 6" Insulated Ground Bushing

Product Specifications

• UPC: 78312630633
• Diameter: 7-1/4 Inch
• Height: 1-5/16 Inch
• Material: Zinc Plated Malleable Iron Body, Zinc Plated Steel Set Screw, Zinc Plated Steel Clamping Screw
• Approval: UL 467, CSA C22.2
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard W-F-408E, NEMA FB-1; Temperature Rating 150 Deg C
• Catalog Number: IBC-600L-20BC
• Model: IBC-L-BC
• Type: Threaded, Set Screw
• Trade Size: 6 Inch
• Wire Size: 14 to 2/0 AWG
• Lug Type: Lay-In, Bright Dip Bronze
• Conductor Material: Copper
• Throat Type: Insulated
• Catalog Description: CONDUIT HARDWARE, BUSHINGS, INSULATING, TRADE SIZE: 6 INCH, MATERIAL: MALLEABLE IRON, CONNECTION TYPE: THREADED, MAXIMUM TEMPERATURE RATING: 150 DEGREE C, FEATURES: FOR RIGID AND IMC, WITH BRONZE LUG, OUTSIDE DIAMETER: 7 1/4 INCH, WIDTH: 1 5/16 INCH, GROU
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded, Set Screw Type; Zinc Plated Malleable Iron Body, Zinc Plated Steel Set Screw, Zinc Plated Steel Clamping Screw Material; 1-5/16 Inch; Rigid Conduit/Imc Used on; 14 to 2/0 AWG Wire Size; Copper Conductor Material; UL 467, CSA C22.2 Approval; 7-1/4 Inch Diameter; 6 Inch Trade Size; Insulated Throat Type; Lay-in, Bright Dip Bronze Lug Type; Applicable Standard W-F-408E, NEMA FB-1; Temperature Rating 150 Deg C; IBC-L-BC Model
• Manufacturer: O-Z Gedney
• Manufacturer Brand: O-Z Gedney
• Sub Category: Grounding Bushing
• Unspsc: 39121312
• UPC 12 Digit: 783126306330
• SKU Name: ozg ibc600l20bc
