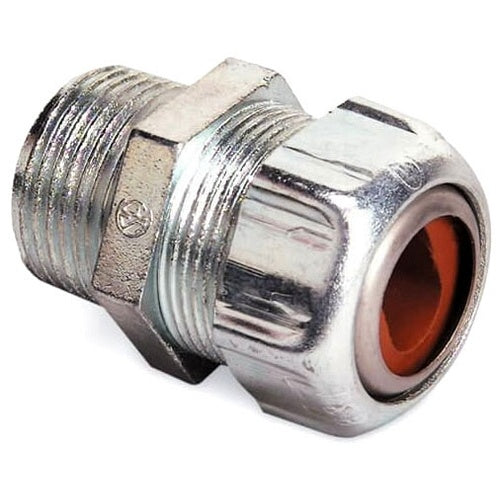

Catalog Description: SERVICE ENTRANCE CABLE CONNECTOR, TYPE COMPRESSION, CABLE SIZE (3) 10 AWG BRAIDED/NEOPRENE JACKET CABLE, (3) 8 AWG NEOPRENE/PVC JACKET CABLE, (3) 6 AWG PVC JACKET CABLE, MINIMUM OPENING 0.335 INCH X 0.575 INCH, MAXIMUM OPENING 0.46 INCH X 0.71 INCH, TRADE SIZE 3/4 INCH, THREAD LENGTH 7/16 INCH, LENGTH 1-5/32 INCH, DIAMETER 1-3/8 INCH, CONSTRUCTIONAL FEATURE WATERTIGHT, MATERIAL ZINC ELECTROPLATED MALLEABLE IRON (BODY), PVC (GROMMET), ZINC ELECTROPLATED STEEL (COMPRESSION WASHER), APPROVAL UL 514B, USED ON OVAL SERVICE ENTRANCE CABLE, APPLICABLE STANDARD W-F-406E
Category: Service Entrance Cable Fittings
Full Technical Description: Compression Type; Zinc Electroplated Malleable Iron (Body), PVC (Grommet), Zinc Electroplated Steel (Compression Washer) Material; 1-5/32 Inch; Oval Service Entrance Cable Used on; 7/16 Inch Thread Length; 0.335 Inch X 0.575 Inch min. Opening; 0.46 Inch X 0.71 Inch Max. Opening; (3) 10 AWG Braided/Neoprene Jacket Cable, (3) 8 AWG Neoprene/Pvc Jacket Cable, (3) 6 AWG PVC Jacket Cable Cable Size; UL 514B Approval; 1-3/8 Inch Diameter; 3/4 Inch Trade Size; Watertight; Applicable Standard W-F-406E; SE Model
