Additional Information: Throat Inner Diameter 1.56 Inch; Temperature Rating 90 Deg C
Catalog Number: SR-15016
Model: SR
Type: Straight Male
Thread Size: 1-1/2 Inch
Material: Zinc Plated Malleable Iron Body, PVC Grommet
Cord Size: 1.4 to 1.6 Inch
Size: 3 Inch Dia x 1-13/16 Inch L
Approval: UL, CSA

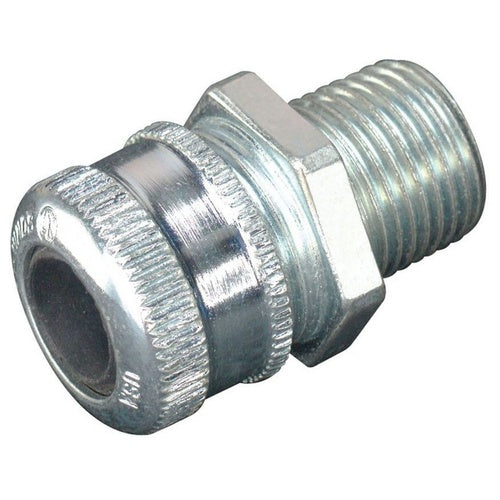

Catalog Description: OZ-GEDNEY TYPE SR GOLD SEAL STRAIN RELIEF STRAIGHT CONNECTOR, SIZE: 1-1/2 IN, CONDUCTOR RANGE: 1.4 - 1.6 IN, MALLEABLE IRON, PVC GROMMETS, FINISH: ZINC PLATED, 90 DEG C, CONNECTION: MNPT, 1.56 IN THROAT INSIDE DIAMETER, 5/8 IN THREAD LENGTH, DIME
Category: Cable & Cord Grips
Full Technical Description: Straight Male Type; Zinc Plated Malleable Iron Body, PVC Grommet Material; 3 Inch Dia X 1-13/16 Inch L Size; UL, CSA Approval; Oiltight, Watertight, Strain Relief, Hazardous Location Application; 1-1/2 Inch Thread Size; 1.4 to 1.6 Inch Cord Size; Throat Inner Diameter 1.56 Inch; Temperature Rating 90 Deg C; SR Model
