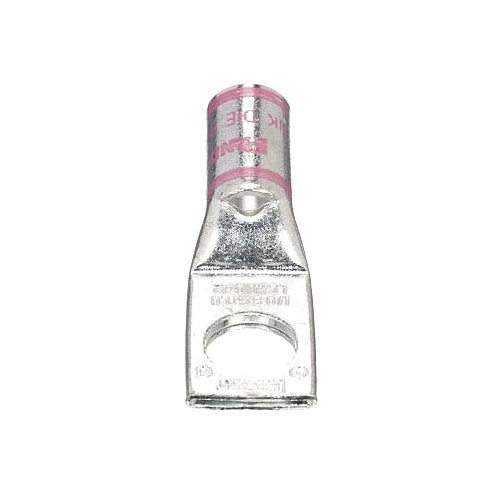

Panduit LCA1/0-12-X Copper Lug 1/0Awg .5" Stud Wdw Pk10

Overview

Panduit LCA1/0-12-X Copper Lug 1/0Awg .5" Stud Wdw Pk10

Product Specifications

• UPC: 07498390027
• Pad Size: 0.8 Inch W x 0.12 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Color: Pink
• Die Index: P42, 12 (Burndy), 42 (T and B)
• Material: Electro Tin Plated Copper
• Overall Length: 2.31 Inch
• Approval: UL 486A/486B, CSA C22.2
• Additional Information: Includes Inspection Window; Temperature Rating 90 Deg C; ROHS Compliant
• Catalog Number: LCA1/0-12-X
• Brand Name: Pan-Lug[TM]
• Model: LCA
• Voltage Rating: 35 KV
• Conductor Material: Copper
• Conductor Size: 1/0 AWG
• Barrel Type: Standard with Window, Straight
• Barrel Length: 0.94 Inch
• Catalog Description: ONE-HOLE, STANDARD BARREL WITH WINDOW LUG, 1/0 AWG WIRE, 1/2 STUD HOLE, STANDARD PACKAGE.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Pink Color; 2.31 Inch Overall Length; 0.94 Inch Barrel Length; Copper Conductor Material; UL 486A/486B, CSA C22.2 Approval; 35 kV Voltage Rating; 1/0 AWG Conductor Size; 1/2 Inch Stud Size; P42, 12 (Burndy), 42 (T and B) Die Index; 0.8 Inch W X 0.12 Inch Thk Pad Size; 1 Pad Hole(S); Standard With Window, Straight Barrel Type; Pan-LUG[TM] Brand; Includes Inspection Window; Temperature Rating 90 Deg C; RoHS Compliant; LCA Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983900275
• SKU Name: pand lca1/012x
