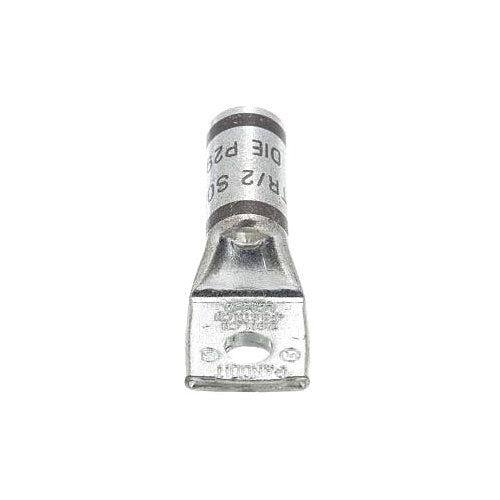

Panduit LCA4-10-L Copper Lug Sbw 4-3Awgstr 2Awgsol #10 Stud Pkg 50

Overview

Panduit LCA4-10-L Copper Lug Sbw 4-3Awgstr 2Awgsol #10 Stud Pkg 50

Product Specifications

• UPC: 07498390010
• Pad Size: 0.55 Inch W x 0.09 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: #10
• Color: Gray
• Die Index: P29, 8 (Burndy), 29 (T and B)
• Material: Electro Tin Plated Copper
• Overall Length: 1.54 Inch
• Approval: UL 486A/486B, CSA C22.2
• Additional Information: Includes Inspection Window; Temperature Rating 90 Deg C; ROHS Compliant
• Catalog Number: LCA4-10-L
• Brand Name: Pan-Lug[TM]
• Model: LCA
• Voltage Rating: 35 KV
• Conductor Material: Copper
• Conductor Size: 4 to 3 AWG (Stranded), 2 AWG (Solid)
• Barrel Type: Standard with Window, Straight
• Barrel Length: 0.81 Inch
• Catalog Description: ONE-HOLE, STANDARD BARREL WITH WINDOW LUG, #4 #3 AWG STR, #2 AWG SOL WIRE, #10 STUD HOLE.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Gray Color; 1.54 Inch Overall Length; 0.81 Inch Barrel Length; Copper Conductor Material; UL 486A/486B, CSA C22.2 Approval; 35 kV Voltage Rating; 4 to 3 AWG (Stranded), 2 AWG (Solid) Conductor Size; #10 Stud Size; P29, 8 (Burndy), 29 (T and B) Die Index; 0.55 Inch W X 0.09 Inch Thk Pad Size; 1 Pad Hole(S); Standard With Window, Straight Barrel Type; Pan-LUG[TM] Brand; Includes Inspection Window; Temperature Rating 90 Deg C; RoHS Compliant; LCA Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983900107
• SKU Name: pand lca410l
