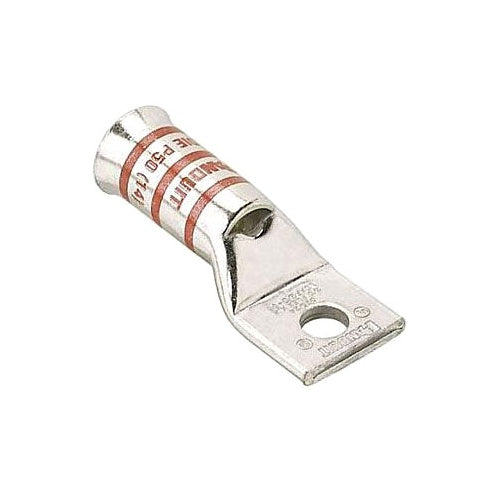

Panduit LCAF500-12-6 Copper Lug 500Kcmil Flared 1/2 Stud Pkg 6

Overview

Panduit LCAF500-12-6 Copper Lug 500Kcmil Flared 1/2 Stud Pkg 6

Product Specifications

• UPC: 07498355671
• Pad Size: 1.89 Inch W x 0.26 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Color: Pink
• Die Index: P99
• Material: Electro Tin Plated Copper
• Overall Length: 4.99 Inch
• Approval: UL, CSA
• Additional Information: Includes Inspection Window; Temperature Rating 90 Deg C; ROHS Compliant
• Catalog Number: LCAF500-12-6
• Brand Name: Pan-Lug[TM]
• Model: LCAF
• Voltage Rating: 35 KV
• Conductor Material: Copper
• Conductor Size: 500 KCMIL (Flex Class K/M), 535.3 KCMIL (Flex Deisel Locomotive)
• Barrel Type: Standard with Window, Straight, Belled
• Barrel Length: 2.28 Inch
• Catalog Description: ONE-HOLE, FLARED BARREL, 500 KCMIL CABLE, 1/2 STUD HOLE.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Pink Color; 4.99 Inch Overall Length; 2.28 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; 500 kcmil (Flex Class K/M), 535.3 kcmil (Flex Deisel Locomotive) Conductor Size; 1/2 Inch Stud Size; P99 Die Index; 1.89 Inch W X 0.26 Inch Thk Pad Size; 1 Pad Hole(S); Standard With Window, Straight, Belled Barrel Type; Pan-LUG[TM] Brand; Includes Inspection Window; Temperature Rating 90 Deg C; RoHS Compliant; LCAF Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983556717
• SKU Name: pand lcaf500126
