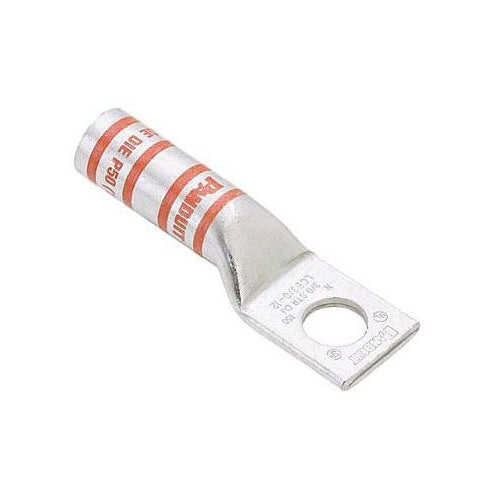

Panduit LCB3/0-38-X Copper Lug 3/0Awg .38" Stud Nowdw Pk10

Overview

Panduit LCB3/0-38-X Copper Lug 3/0Awg .38" Stud Nowdw Pk10

Product Specifications

• UPC: 07498390134
• Pad Size: 0.96 Inch W x 0.13 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 3/8 Inch
• Color: Orange
• Die Index: P50, 14 (Burndy), 50 (T and B)
• Material: Electro Tin Plated Copper
• Overall Length: 2.87 Inch
• Approval: UL 486A/486B, CSA C22.2
• Additional Information: Temperature Rating 90 Deg C
• Catalog Number: LCB3/0-38-X
• Brand Name: Pan-Lug[TM]
• Model: LCB
• Voltage Rating: 35 KV
• Conductor Material: Copper
• Conductor Size: 3/0 AWG
• Barrel Type: Long, Straight
• Barrel Length: 1.5 Inch
• Catalog Description: ONE-HOLE, LONG BARREL LUG, 3/0 AWG WIRE, 3/8 STUD HOLE.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Orange Color; 2.87 Inch Overall Length; 1.5 Inch Barrel Length; Copper Conductor Material; UL 486A/486B, CSA C22.2 Approval; 35 kV Voltage Rating; 3/0 AWG Conductor Size; 3/8 Inch Stud Size; P50, 14 (Burndy), 50 (T and B) Die Index; 0.96 Inch W X 0.13 Inch Thk Pad Size; 1 Pad Hole(S); Long, Straight Barrel Type; Pan-LUG[TM] Brand; Temperature Rating 90 Deg C; LCB Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983901340
• SKU Name: pand lcb3/038x
