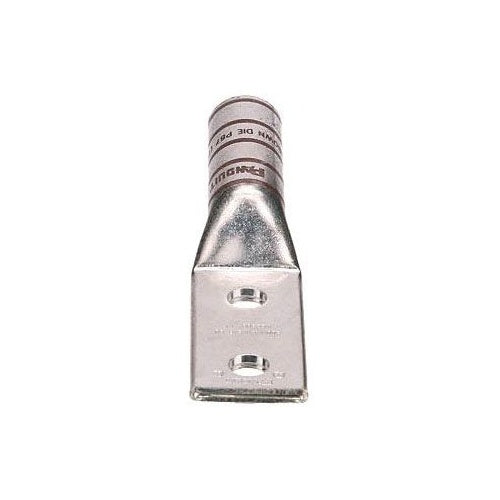

Panduit LCC500-12-6 Copper Lug 2-Hole 500Kcmil 1/2 Stud 1.75 Pkg 6

Overview

Panduit LCC500-12-6 Copper Lug 2-Hole 500Kcmil 1/2 Stud 1.75 Pkg 6

Product Specifications

• UPC: 07498390265
• Pad Size: 1.54 Inch W x 0.22 Inch Thk
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Brown
• Die Index: P87, 20 (Burndy), 87 (T and B)
• Material: Electro Tin Plated Copper
• Overall Length: 6.36 Inch
• Approval: UL 486A/486B, CSA C22.2
• Additional Information: Temperature Rating 90 Deg C; ROHS Compliant
• Catalog Number: LCC500-12-6
• Brand Name: Pan-Lug[TM]
• Model: LCC
• Voltage Rating: 35 KV
• Conductor Material: Copper
• Conductor Size: 500 KCMIL
• Barrel Type: Long, Straight
• Barrel Length: 2.5 Inch
• Catalog Description: THE LCC500-12-6 TIN-PLATED COPPER COMPRESSION CONNECTOR LUG, TWO-HOLE, LONG BARREL, HAS COLOR-CODED BARRELS MARKED WITH PANDUIT AND SPECIFIED COMPETITOR DIE INDEX NUMBERS FOR PROPER CRIMP DIE SELECTION. THE LONG BARREL MAXIMIZES THE NUMBER OF CRIMPS AND PROVIDES PREMIUM WIRE PULL-OUT STRENGTH AND PERFORMANCE. THE ENCLOSED BARREL PREVENTS CORROSIVE MATERIAL FROM ENTERING THE BARREL WHEN USED IN HARSH ENVIRONMENTS. UL LISTED AND CSA CERTIFIED.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Brown Color; 6.36 Inch Overall Length; 2.5 Inch Barrel Length; Copper Conductor Material; UL 486A/486B, CSA C22.2 Approval; 35 kV Voltage Rating; 500 kcmil Conductor Size; 1/2 Inch Stud Size; P87, 20 (Burndy), 87 (T and B) Die Index; 1.54 Inch W X 0.22 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Long, Straight Barrel Type; Pan-LUG[TM] Brand; Temperature Rating 90 Deg C; RoHS Compliant; LCC Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983902651
• SKU Name: pand lcc500126
