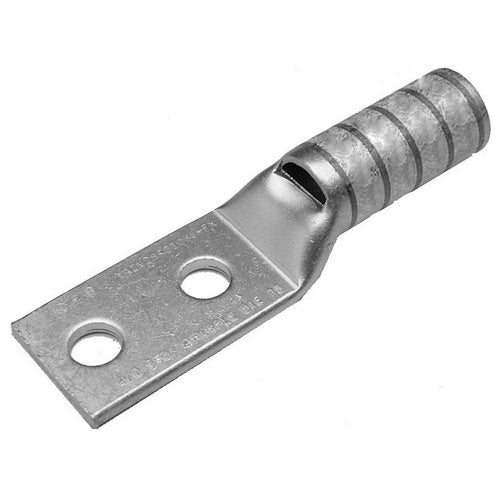

Catalog Description: THE LCCX350-12-6 TIN-PLATED COPPER COMPRESSION LUG, TWO-HOLE, LONG BARREL, HAS COLOR-CODED BARRELS MARKED WITH PANDUIT AND SPECIFIED COMPETITOR DIE INDEX NUMBERS FOR PROPER CRIMP DIE SELECTION. THE LONG BARREL MAXIMIZES THE NUMBER OF CRIMPS AND PROVIDES PREMIUM WIRE PULL-OUT STRENGTH AND PERFORMANCE. THE GENEROUSLY BEVELED WIRE ENTRY PREVENTS BENT BACK STRANDS WHEN INSERTING THE CONDUCTOR INTO THE BARREL. UL LISTED AND CSA CERTIFIED.
Category: Large Terminals & Connectors
Full Technical Description: Electro Tin Plated Copper Material; Blue Color; 6.13 Inch Overall Length; 2.5 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; 350 kcmil (Flex Class G/H/I/K/M), 373.7 kcmil (Flex Deisel Locomotive) Conductor Size; 1/2 Inch Stud Size; P76, 19 (Burndy), 76H (T and B) Die Index; 1.54 Inch W X 0.22 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Long With Window, Straight Barrel Type; Pan-LUG[TM] Brand; Includes Inspection Window; Temperature Rating 90 Deg C; RoHS Compliant; LCCX Model
