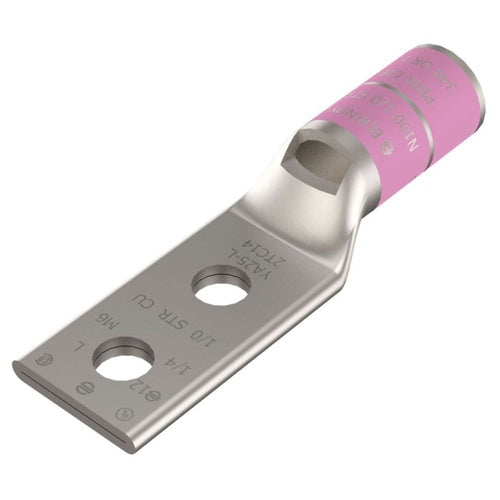

Panduit LCD1/0-12-X Copper Lug 1/0Awg 1.75" Space Wdw Pk10
Product Specifications
UPC: 07498390090
Pad Size: 0.8 Inch W x 0.12 Inch Thk
Number Of Pad Holes: 2
Pad Hole Spacing: 1.75 Inch
Stud Size: 1/2 Inch
Color: Pink
Die Index: P42, 12 (Burndy), 42 (T and B)
Material: Electro Tin Plated Copper
Overall Length: 4.25 Inch
Approval: UL 486A/486B, CSA C22.2
Additional Information: Includes Inspection Window; Temperature Rating 90 Deg C
Catalog Number: LCD1/0-12-X
Brand Name: Pan-Lug[TM]
Model: LCD
Voltage Rating: 35 KV
Conductor Material: Copper
Conductor Size: 1/0 AWG
Barrel Type: Standard with Window, Straight
Barrel Length: 0.94 Inch
Catalog Description: TWO-HOLE, STANDARD BARREL LUG WITH WINDOW, 1/0 AWG WIRE, 1/2 STUD HOLE, 1.75 HOLE SPACING.
Category: Large Terminals & Connectors
Full Technical Description: Electro Tin Plated Copper Material; Pink Color; 4.25 Inch Overall Length; 0.94 Inch Barrel Length; Copper Conductor Material; UL 486A/486B, CSA C22.2 Approval; 35 kV Voltage Rating; 1/0 AWG Conductor Size; 1/2 Inch Stud Size; P42, 12 (Burndy), 42 (T and B) Die Index; 0.8 Inch W X 0.12 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Standard With Window, Straight Barrel Type; Pan-LUG[TM] Brand; Includes Inspection Window; Temperature Rating 90 Deg C; LCD Model
