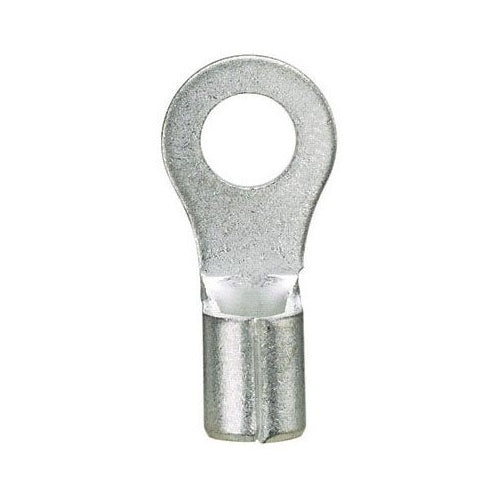

Panduit P10-10R-D Ring Non-Insulated 12-10Awg #10 Stud Pk500
Product Specifications
UPC: 07498380233
Temperature Rating: 302 Deg F
Standard Package: 500
Approval: UL 486A/B, CSA C22.2
Additional Information: RoHS Compliant; Voltage Rating 2000 V; Overall Dimension 0.81 Inch L x 0.38 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Brazed Seam
Catalog Number: P10-10R-D
Brand Name: Pan-Term[R]
Model: Type P-R
Type: Beveled
Minimum Conductor Size: 14 AWG
Maximum Conductor Size: 10 AWG
Insulation Type: Non-Insulated
Stud Size: #10
Catalog Description: THE P10-10R-D PAN-TERM TERMINAL IS A NON-INSULATED, RING TERMINAL. BRAZED SEAM PROTECTS TERMINAL BARREL FROM SPLITTING DURING THE CRIMPING PROCESS. INTERNAL BARREL SERRATIONS ASSURE GOOD WIRE CONTACT AND MAXIMUM TENSILE STRENGTH.
Category: Small Terminals & Connectors
Full Technical Description: Beveled Type; 14 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 486A/B, CSA C22.2 Approval; 302 Deg F Temperature Rating; 500 Standard Package; #10 Stud Size; Non-Insulated Insulation Type; Pan-Term [R] Brand; RoHS Compliant; Voltage Rating 2000 V; Overall Dimension 0.81 Inch L X 0.38 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Brazed Seam; TYPE P-R Model
