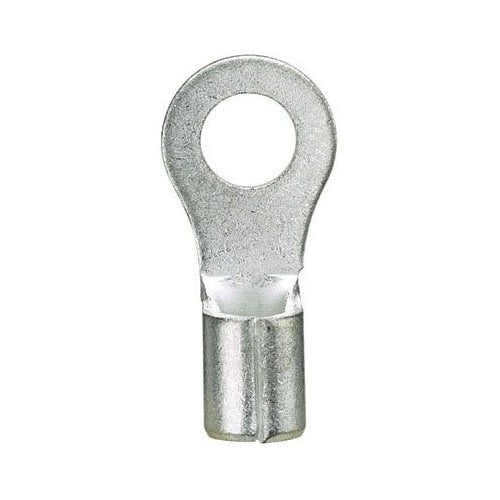

Panduit P10-6R-D Ring Non-Insulated 12-10Awg #6 Stud Pk500

Overview

Panduit P10-6R-D Ring Non-Insulated 12-10Awg #6 Stud Pk500

Product Specifications

• UPC: 07498380229
• Temperature Rating: 194 DEG F
• Standard Package: 500
• Approval: UL, CSA
• Additional Information: DIMENSION 0.78 INCH LENGTH X 0.31 INCH WIDTH X 0.04 INCH THICK; BRAZED SEAM BARREL; MATERIAL ELECTROLYTIC TIN PLATED COPPER
• Catalog Number: P10-6R-D
• Brand Name: PAN-TERM.
• Model: P
• Type: BEVELED
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Insulation Type: NON INSULATED
• Stud Size: #6
• Catalog Description: RING TERMINAL, 14 10 AWG, #6 STUD SIZE, NON-INSULATED, BULK PACKAGE.
• Category: Small Terminals & Connectors
• Full Technical Description: Beveled Type; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL, CSA Approval; 194 Deg F Temperature Rating; 500 Standard Package; #6 Stud Size; Non Insulated Insulation Type; Pan-Term. Brand; Dimension 0.78 Inch Length X 0.31 Inch Width X 0.04 Inch Thick; Brazed Seam Barrel; Material Electrolytic Tin Plated Copper; P Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Ring Lug
• Unspsc: 39121409
• UPC 12 Digit: 074983802296
• SKU Name: pand p106rd
