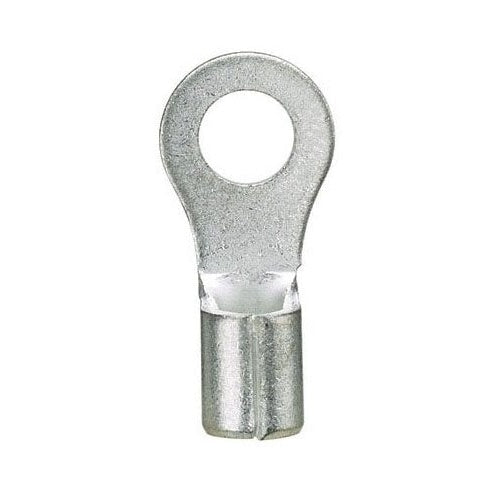

Panduit P10-8R-D Ring Non-Insulated 12-10Awg #8 Stud Pk500

Overview

Panduit P10-8R-D Ring Non-Insulated 12-10Awg #8 Stud Pk500

Product Specifications

• UPC: 07498380231
• Temperature Rating: 302 Deg F
• Standard Package: 500
• Approval: UL 486A/486B, CSA C22.2
• Additional Information: Overall Dimension 0.78 Inch L x 0.31 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Brazed Seam; Voltage Rating 2000 V; ROHS Compliant
• Catalog Number: P10-8R-D
• Brand Name: Pan-Term[R]
• Model: P-R
• Type: Beveled
• Minimum Conductor Size: 14 AWG
• Maximum Conductor Size: 10 AWG
• Insulation Type: Non-Insulated
• Stud Size: #8
• Catalog Description: RING TERMINAL, 14 10 AWG, #8 STUD SIZE, NON-INSULATED, BULK PACKAGE.
• Category: Small Terminals & Connectors
• Full Technical Description: Beveled Type; 14 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 486A/486B, CSA C22.2 Approval; 302 Deg F Temperature Rating; 500 Standard Package; #8 Stud Size; Non-Insulated Insulation Type; PAN-TERM[R] Brand; Overall Dimension 0.78 Inch L X 0.31 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Brazed Seam; Voltage Rating 2000 V; RoHS Compliant; P-R Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Ring Lug
• Unspsc: 39121409
• UPC 12 Digit: 074983802319
• SKU Name: pand p108rd
