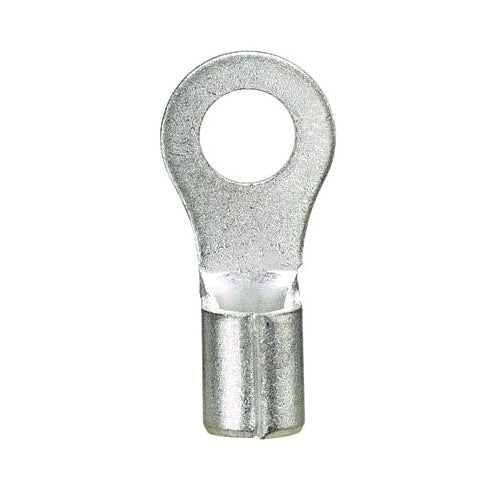

Panduit P14-4R-M Ring Non-Insulated 16-14Awg #4 Stud Pk1000

Overview

Panduit P14-4R-M Ring Non-Insulated 16-14Awg #4 Stud Pk1000

Product Specifications

• UPC: 07498380215
• Temperature Rating: 194 DEG F
• Standard Package: 1000
• Approval: UL, CSA
• Additional Information: DIMENSION 0.62 INCH LENGTH X 1/4 INCH WIDTH X 0.03 INCH THICK; BRAZED SEAM BARREL; MATERIAL ELECTROLYTIC TIN PLATED COPPER
• Catalog Number: P14-4R-M
• Brand Name: PAN-TERM.
• Model: P
• Type: BEVELED
• Minimum Conductor Size: 16 AWG
• Maximum Conductor Size: 14 AWG
• Insulation Type: NON INSULATED
• Stud Size: #4
• Catalog Description: RING TERMINAL, 18 14 AWG, #4 STUD SIZE, NON-INSULATED, BULK PACKAGE.
• Category: Small Terminals & Connectors
• Full Technical Description: Beveled Type; 16 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL, CSA Approval; 194 Deg F Temperature Rating; 1000 Standard Package; #4 Stud Size; Non Insulated Insulation Type; Pan-Term. Brand; Dimension 0.62 Inch Length X 1/4 Inch Width X 0.03 Inch Thick; Brazed Seam Barrel; Material Electrolytic Tin Plated Copper; P Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Ring Lug
• Unspsc: 39121409
• UPC 12 Digit: 074983802159
• SKU Name: pand p144rm
