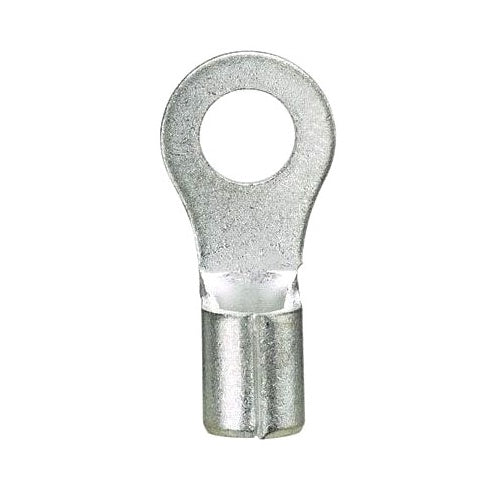

Panduit P14-6R-M Ring Non-Insulated 16-14Awg #6 Stud Pk1000

Overview

Panduit P14-6R-M Ring Non-Insulated 16-14Awg #6 Stud Pk1000

Product Specifications

• UPC: 07498380217
• Temperature Rating: 302 Deg F
• Standard Package: 1000
• Approval: UL 486A/486B, CSA C22.2
• Additional Information: Overall Dimension 0.62 Inch L x 0.25 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Brazed Seam; Voltage Rating 2000 V; ROHS Compliant
• Catalog Number: P14-6R-M
• Brand Name: Pan-Term[R]
• Model: P-R
• Type: Beveled
• Minimum Conductor Size: 18 AWG
• Maximum Conductor Size: 14 AWG
• Insulation Type: Non-Insulated
• Stud Size: #6
• Catalog Description: RING TERMINAL, 18 14 AWG, #6 STUD SIZE, NON-INSULATED, BULK PACKAGE.
• Category: Small Terminals & Connectors
• Full Technical Description: Beveled Type; 18 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486A/486B, CSA C22.2 Approval; 302 Deg F Temperature Rating; 1000 Standard Package; #6 Stud Size; Non-Insulated Insulation Type; PAN-TERM[R] Brand; Overall Dimension 0.62 Inch L X 0.25 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Brazed Seam; Voltage Rating 2000 V; RoHS Compliant; P-R Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Ring Lug
• Unspsc: 39121409
• UPC 12 Digit: 074983802173
• SKU Name: pand p146rm
