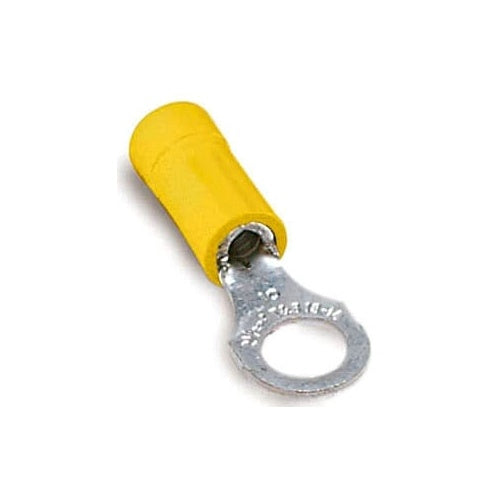

Panduit PN10-10RX-L Ring Nylon Insulated Exp 12-10Awg #10 Pk50
Product Specifications
UPC: 07498380072
Stud Size: #10
Temperature Rating: 221 Deg F
Standard Package: 50
Approval: UL 486A/486B, CSA C22.2
Additional Information: Overall Dimension 1.13 Inch L x 0.37 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Insulation Grip Sleeve; Voltage Rating 600 V; ROHS Compliant
Catalog Number: PN10-10RX-L
Brand Name: Pan-Term[R]
Model: PN-RX
Type: Expanded Entry
Minimum Conductor Size: 12 AWG
Maximum Conductor Size: 10 AWG
Color: Yellow
Insulation Type: Nylon Insulated
Catalog Description: RING TERMINAL, 12 10 AWG, #10 STUD SIZE, NYLON INSULATED, EXPANDED INSULATION FOR LARGE WIRE O.D.
Category: Small Terminals & Connectors
Full Technical Description: Expanded Entry Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 486A/486B, CSA C22.2 Approval; 221 Deg F Temperature Rating; 50 Standard Package; #10 Stud Size; Nylon Insulated Insulation Type; PAN-TERM[R] Brand; Overall Dimension 1.13 Inch L X 0.37 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Insulation Grip Sleeve; Voltage Rating 600 V; RoHS Compliant; PN-RX Model
