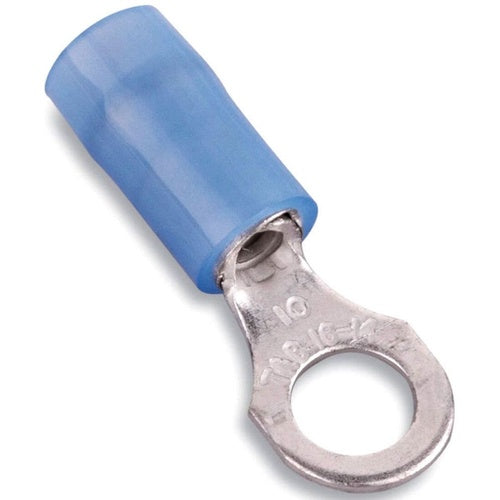

Panduit PNF14-6R-M Ring Funnel Nylon 16-14Awg #6 Pk1000

Overview

Panduit PNF14-6R-M Ring Funnel Nylon 16-14Awg #6 Pk1000

Product Specifications

• UPC: 07498381039
• Stud Size: #6
• Temperature Rating: 221 Deg F
• Standard Package: 1000
• Approval: UL 486A/486B, CSA C22.2
• Additional Information: Overall Dimension 0.87 Inch L x 0.31 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Insulation Grip Sleeve; Voltage Rating 600 V; ROHS Compliant
• Catalog Number: PNF14-6R-M
• Brand Name: Pan-Term[R]
• Model: PNF-R
• Type: Funnel Entry
• Minimum Conductor Size: 16 AWG
• Maximum Conductor Size: 14 AWG
• Color: Blue
• Insulation Type: Nylon Insulated
• Catalog Description: RING TERMINAL, 16 14 AWG, #6 STUD SIZE, FUNNEL ENTRY, NYLON INSULATED, BULK PACKAGE.
• Category: Small Terminals & Connectors
• Full Technical Description: Funnel Entry Type; Blue Color; 16 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486A/486B, CSA C22.2 Approval; 221 Deg F Temperature Rating; 1000 Standard Package; #6 Stud Size; Nylon Insulated Insulation Type; PAN-TERM[R] Brand; Overall Dimension 0.87 Inch L X 0.31 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Insulation Grip Sleeve; Voltage Rating 600 V; RoHS Compliant; PNF-R Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Ring Lug
• Unspsc: 39121409
• UPC 12 Digit: 074983810390
• SKU Name: pand pnf146rm
