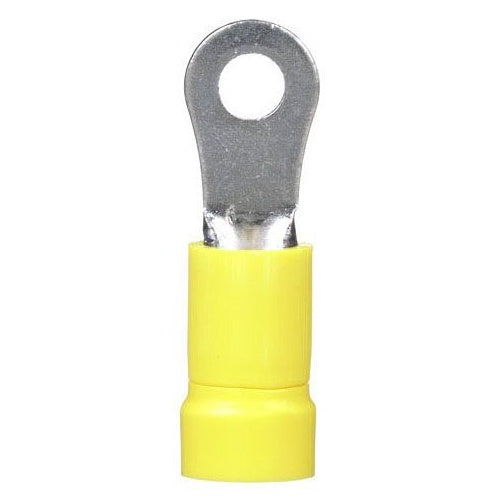

Panduit PV10-6R-D Ring Terminal Vinyl 12-10Awg #6 Pk500
Product Specifications
UPC: 07498380129
Stud Size: #6
Temperature Rating: 221 Deg F
Standard Package: 500 per Pack
Approval: UL 486A/B, UL (Canada and US), CSA C22.2
Additional Information: RoHS Compliant; Barrel Type Brazed Seam; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper; Overall Dimension 1.05 Inch Length x 0.31 Inch Width; Flammability Rating UL 94 V-0
Full Technical Description: Funnel Entry Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 486A/B, UL (Canada and Us), CSA C22.2 Approval; 221 Deg F Temperature Rating; 500 Per Pack Standard Package; #6 Stud Size; Vinyl Insulated Insulation Type; PAN-TERM[R] Brand; RoHS Compliant; Barrel Type Brazed Seam; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper; Overall Dimension 1.05 Inch Length X 0.31 Inch Width; Flammability Rating UL 94 V-0; PV-R Model
