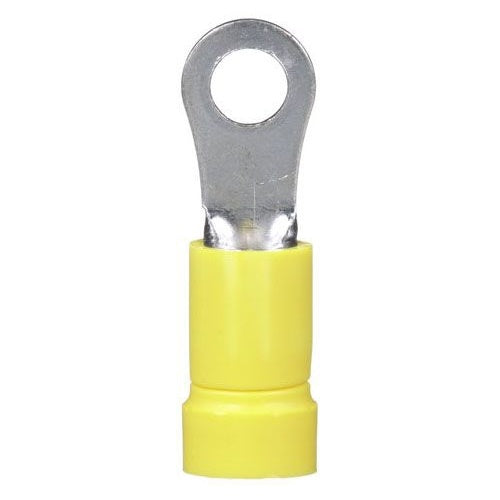

Panduit PV10-8R-D Ring Terminal Vinyl 12-10Awg #8 Pk500
Product Specifications
UPC: 07498380131
Stud Size: #8
Temperature Rating: 221 Deg F
Standard Package: 500
Approval: UL 486A/486B, CSA C22.2
Additional Information: Overall Dimension 1.05 Inch L x 0.31 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Brazed Seam; Voltage Rating 600 V; ROHS Compliant
Catalog Number: PV10-8R-D
Brand Name: Pan-Term[R]
Model: PV-R
Type: Funnel Entry
Minimum Conductor Size: 12 AWG
Maximum Conductor Size: 10 AWG
Color: Yellow
Insulation Type: Vinyl Insulated
Catalog Description: THE PV10-8R-D PAN-TERM TERMINAL IS A VINYL INSULATED, RING TERMINAL. BRAZED SEAM PROTECTS TERMINAL BARREL FROM SPLITTING DURING THE CRIMP PROCESS. INTERNAL BARREL SERRATIONS ASSURE GOOD WIRE CONTACT AND MAXIMUM TENSILE STRENGTH.
Category: Small Terminals & Connectors
Full Technical Description: Funnel Entry Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 486A/486B, CSA C22.2 Approval; 221 Deg F Temperature Rating; 500 Standard Package; #8 Stud Size; Vinyl Insulated Insulation Type; PAN-TERM[R] Brand; Overall Dimension 1.05 Inch L X 0.31 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Brazed Seam; Voltage Rating 600 V; RoHS Compliant; PV-R Model
