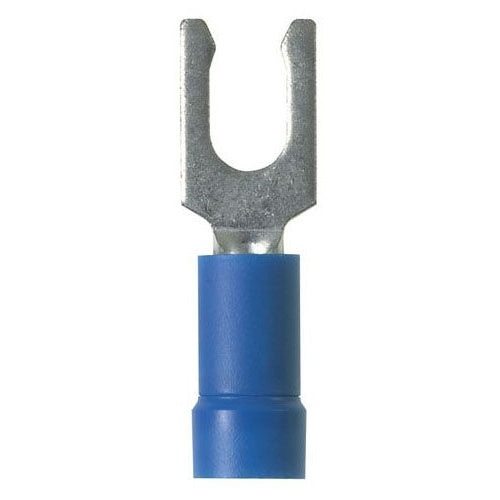

Panduit PV14-10LF-M Locking ForkTerminal Vinyl Fe 18-14Awg #10Stdpk1000

Overview

Panduit PV14-10LF-M Locking ForkTerminal Vinyl Fe 18-14Awg #10Stdpk1000

Product Specifications

• UPC: 07498380811
• Stud Size: #10
• Temperature Rating: 221 Deg F
• Standard Package: 1000
• Approval: UL 486A/486B, CSA C22.2
• Additional Information: Overall Dimension 0.97 Inch L x 0.33 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Brazed Seam; Voltage Rating 600 V; ROHS Compliant
• Catalog Number: PV14-10LF-M
• Brand Name: Pan-Term[R]
• Model: PV-LF
• Type: Funnel Entry, Locking
• Minimum Conductor Size: 18 AWG
• Maximum Conductor Size: 14 AWG
• Color: Blue
• Insulation Type: Vinyl Insulated
• Catalog Description: LOCKING FORK TERMINAL, VINYL INSULATED, FUNNEL ENTRY, 18- 14 AWG, #10 STUD SIZE, BULK PACKAGE.
• Category: Small Terminals & Connectors
• Full Technical Description: Funnel Entry, Locking Type; Blue Color; 18 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486A/486B, CSA C22.2 Approval; 221 Deg F Temperature Rating; 1000 Standard Package; #10 Stud Size; Vinyl Insulated Insulation Type; PAN-TERM[R] Brand; Overall Dimension 0.97 Inch L X 0.33 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Brazed Seam; Voltage Rating 600 V; RoHS Compliant; PV-LF Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Fork Lug
• Unspsc: 39121409
• UPC 12 Digit: 074983808113
• SKU Name: pand pv1410lfm
