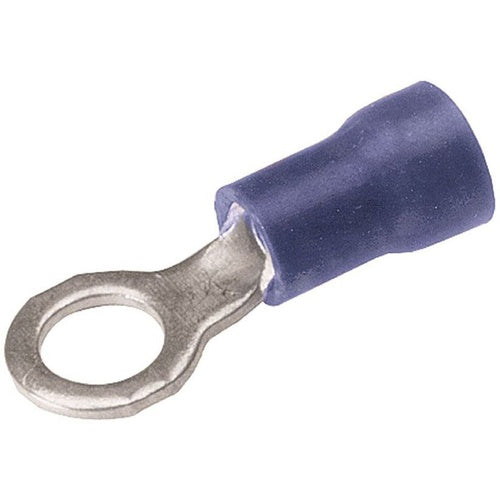

Panduit PV14-14R-M Ring Term Vinyl 16-14Awg 1/4" Pk1000
Product Specifications
UPC: 07498380123
Stud Size: 1/4 Inch
Temperature Rating: 221 Deg F
Standard Package: 1000
Approval: UL, CSA
Additional Information: RoHS Compliant; Barrel Style Brazed Seam with Insulation Support; Voltage Rating 600 Volt; Overall Dimension 1.12 Inch Length x 0.46 Inch Width; Wire Strip Length 0.31 Inch; Maximum Wire Insulation Diameter 0.17 Inch; Material Tin Plated Copper
Catalog Number: PV14-14R-M
Brand Name: Pan-Term[R]
Model: PV-R
Type: Funnel Entry
Minimum Conductor Size: 16 AWG
Maximum Conductor Size: 14 AWG
Color: Blue
Insulation Type: Vinyl Insulated
Catalog Description: THE PV14-14R-M PAN-TERM TERMINAL IS A VINYL INSULATED, RING TERMINAL. BRAZED SEAM PROTECTS TERMINAL BARREL FROM SPLITTING DURING THE CRIMP PROCESS. INTERNAL BARREL SERRATIONS ASSURE GOOD WIRE CONTACT AND MAXIMUM TENSILE STRENGTH.
Category: Small Terminals & Connectors
Full Technical Description: Funnel Entry Type; Blue Color; 16 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL, CSA Approval; 221 Deg F Temperature Rating; 1000 Standard Package; 1/4 Inch Stud Size; Vinyl Insulated Insulation Type; PAN-TERM[R] Brand; RoHS Compliant; Barrel Style Brazed Seam With Insulation Support; Voltage Rating 600 Volt; Overall Dimension 1.12 Inch Length X 0.46 Inch Width; Wire Strip Length 0.31 Inch; Maximum Wire Insulation Diameter 0.17 Inch; Material Tin Plated Copper; PV-R Model
