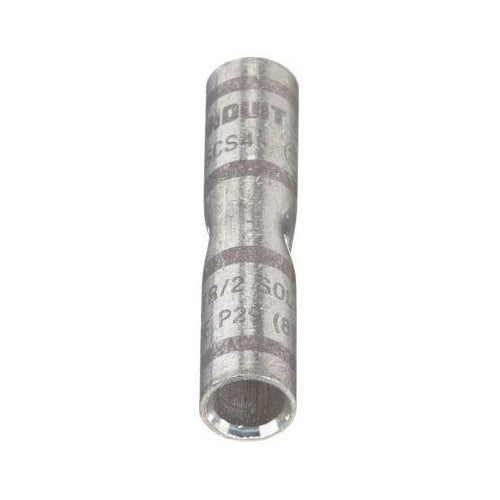

Panduit SCS4-L Copper Butt Splice C2782 Pkg 50

Overview

Panduit SCS4-L Copper Butt Splice C2782 Pkg 50

Product Specifications

• UPC: 07498390310
• Length: 1.75 Inch
• Inner Diameter: 0.28 Inch
• Outer Diameter: 0.38 Inch
• Body Material: Tin Plated Copper
• Approval: UL, CSA
• Additional Information: Temperature Rating 90 Deg C; ROHS Compliant
• Catalog Number: SCS4-L
• Model: SCS
• Type: Butt
• Voltage Rating: 35 KV
• Conductor Size: 4 to 3 AWG (Stranded), 2 AWG (Solid)
• Conductor Material: Copper
• Color Code: Gray
• Barrel Type: Standard
• Catalog Description: COPPER BUTT SPLICE, STANDARD BARREL, #4 #3 AWG STR, #2 AWG SOL WIRE.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt Type; 1.75 Inch; 0.28 Inch Inner Diameter; 0.38 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; Tin Plated Copper Body Material; 4 to 3 AWG (Stranded), 2 AWG (Solid) Conductor Size; Gray Color Code; Standard Barrel Type; Pan-LUG[TM] Brand; Temperature Rating 90 Deg C; RoHS Compliant; SCS Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 074983903108
• SKU Name: pand scs4l
