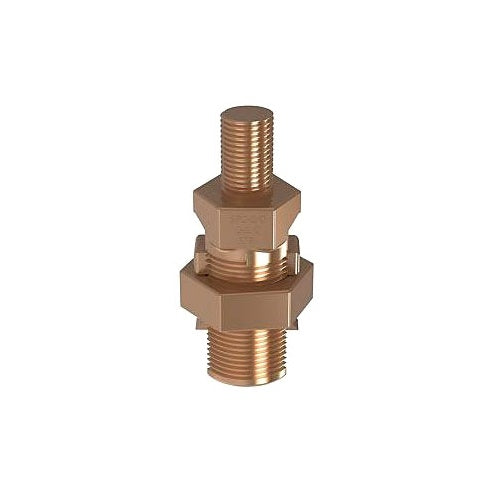

Catalog Description: THE SP2-2-C SERVICE POST GROUNDING LUG IS DESIGNED FOR GROUNDING TWO COPPER CODE CONDUCTORS TO STEEL STRUCTURES, BUSBARS, TRANSFORMERS. THE TRUE HEX DESIGN FOR BODY AND NUT HEX PROVIDES CORRECT FIT WITH SOCKET, BOX, OR OPEN-END WRENCHES, RESULTING IN PROPER TORQUING OF ELECTRICAL CONNECTION. THE PRESSURE BAR PROVIDES A SECURE CONNECTION ON A FULL RANGE OF CONDUCTOR COMBINATIONS USED WITH EACH LUG PROVIDING A PREMIUM WIRE PULL-OUT STRENGTH. UL LISTED FOR GROUNDING AND BONDING.
Category: Large Terminals & Connectors
Full Technical Description: Hard Drawn Copper Material; Cable to Steel Structure/Fence Post/Transformer Used on; 0.63 Inch Stud Length; UL 467 (Canada and Us) Approval; 100 Standard Package; 2 Conductor(S); 10 AWG Solid to 2 AWG Stranded Conductor Size; 3/8 Inch-16 TPI Stud Diameter; 0.69 Inch Body Hex Size; 0.88 Inch Nut Hex Size; Nut Hex Size 0.88 Inch; Body Hex Size 0.69 Inch; RoHS Compliant; SP2 Model
