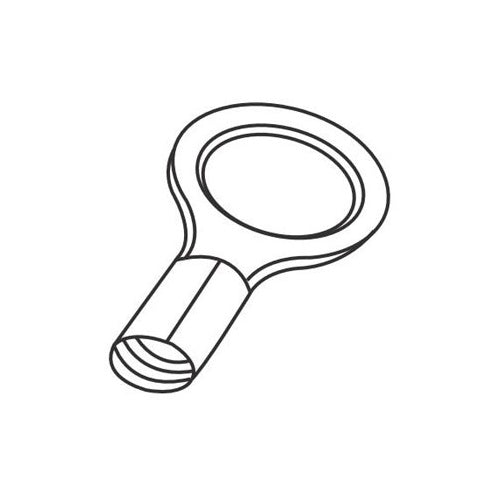

Penn-Union R1A-6S 22-18 Ring Terminal

Overview

Penn-Union R1A-6S 22-18 Ring Terminal

Product Specifications

• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; 22 AWG min. Conductor Size; 18 AWG Max. Conductor Size; UL, CUL, CSA Approval; #6 Stud Size; Non Insulated Insulation Type; Penn-Crimps. Brand; Dimension 0.65 Inch Length X 1/4 Inch Width X 0.03 Inch Thick; Butted Seam Barrel; Material Electrolytic Tin Plated Annealed Copper; R1 Model
• Manufacturer: Penn-Union Corp.
• Manufacturer Brand: Penn-Union Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 785037911313
• SKU Name: r1a6s pennunion

Resources

• Manufacturer Spec Sheet
