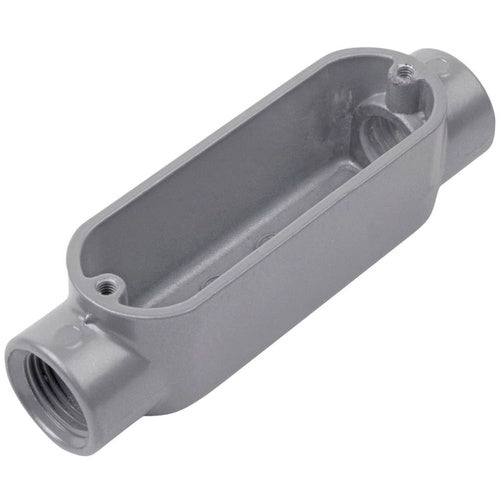

Red Dot AC-3 1" Aluminum C-Type Conduit Body

Overview

Red Dot AC-3 1" Aluminum C-Type Conduit Body

Product Specifications

• UPC: 04226930020
• Size: 5-3/8 Inch L x 1-3/4 Inch W
• Installation: Threaded
• Material: Powder Coated Urethane Die-Cast Aluminum Body, Stainless Steel Screw
• Approval: UL E28688, CSA
• Used On: Rigid/IMC Conduit
• Additional Information: Includes Cover, Gasket
• Catalog Number: AC-3
• Model: A
• Access Opening: Straight Side
• Configuration: C
• Cover Type: Die-Cast/Stamped Aluminum Alloy, Screw-On
• Hub Location: Straight
• Number Of Hubs: 2
• Hub Size: 1 Inch
• Catalog Description: 1 INCH THREADED DIE CAST ALUMINUM THRU-FEED CONDUIT BODY, FOR USE WITH RIGID/IMC CONDUIT
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Powder Coated Urethane Die-Cast Aluminum Body, Stainless Steel Screw Material; 5-3/8 Inch L X 1-3/4 Inch W Size; Rigid/Imc Conduit Used on; 1 Inch Hub Size; Threaded Installation; C Configuration; 2 Hub(S); UL E28688, CSA Approval; Die-Cast/Stamped Aluminum Alloy, Screw-on Cover Type; Straight Hub Location; Straight Side Access Opening; Includes Cover, Gasket; A Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Red-Dot
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 042269300200
• SKU Name: rdot ac3
