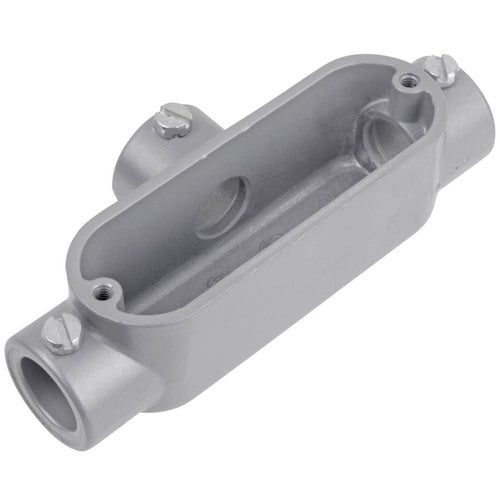

Red Dot BT-5 1-1/2" Aluminum T-Type Emt Body

Overview

Red Dot BT-5 1-1/2" Aluminum T-Type Emt Body

Product Specifications

• UPC: 04226933875
• Size: 7-1/4 Inch L x 3-17/32 Inch W
• Installation: Set Screw, Threaded
• Material: Die-Cast Copper Free Aluminum Body, Stainless Steel Screw
• Approval: UL E28688, CSA
• Used On: EMT Conduit
• Catalog Number: BT-5
• Model: B
• Access Opening: Tee Side
• Configuration: T
• Cover Type: Screw-On
• Hub Location: Tee
• Number Of Hubs: 3
• Hub Size: 1-1/2 Inch
• Catalog Description: 1-1/2 INCH SET SCREW DIE CAST ALUMINUM CONDUIT BODY, T-STYLE. FOR USE WITH EMT CONDUIT.
• Category: Emt Conduit Bodies Only
• Full Technical Description: Die-Cast Copper Free Aluminum Body, Stainless Steel Screw Material; 7-1/4 Inch L X 3-17/32 Inch W Size; EMT Conduit Used on; 1-1/2 Inch Hub Size; Set Screw, Threaded Installation; T Configuration; 3 Hub(S); UL E28688, CSA Approval; Screw-on Cover Type; Tee Hub Location; Tee Side Access Opening; B Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Red-Dot
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 042269338753
• SKU Name: rdot bt5
