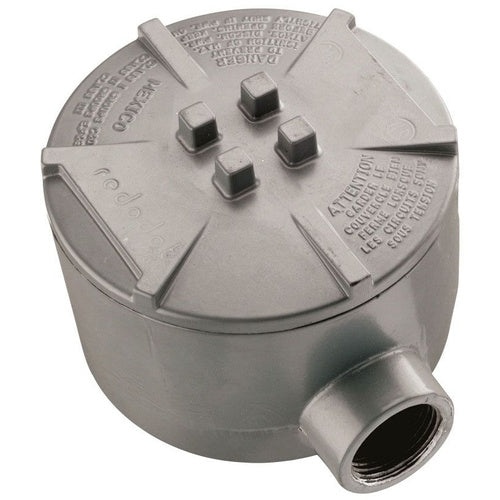

Red Dot GALB-2 3/4" Explosion-Proof LB-Type Jct Box

Overview

Red Dot GALB-2 3/4" Explosion-Proof LB-Type Jct Box

Product Specifications

• UPC: 04226945325
• Shape: Round
• Cover Type: Externally Threaded
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III Div 1 and 2, NEMA 4
• Material: Aluminum Lacquer Finished Die-Cast Copper Free Aluminum
• Approval: UL, CSA
• Catalog Number: GALB-2
• Model: GALB
• Style: LB
• Hub Size: 3/4 Inch
• Hub Type: External
• Number Of Hubs: 2
• Hub Location: (1) Side, (1) Down
• Capacity: 18.8 Cu Inch
• Catalog Description: 3/4 INCH DIE CAST ALUMINUM, LB STYLE HAZARDOUS LOCATION EXTERNAL HUB WITH COVER AND INSTALLED GREEN GROUND SCREW, 18.8 CUBIC INCH
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Aluminum Lacquer Finished Die-Cast Copper Free Aluminum Material; Round Shape; 3/4 Inch Hub Size; 2 Hub(S); UL, CSA Approval; Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III Div 1 and 2, NEMA 4 Enclosure; Externally Threaded Cover Type; 18.8 Cu Inch Capacity; lb Style; (1) Side, (1) Down Hub Location; External Hub Type; GALB Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Red-Dot
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39131708
• UPC 12 Digit: 042269453258
• SKU Name: rdot galb2
