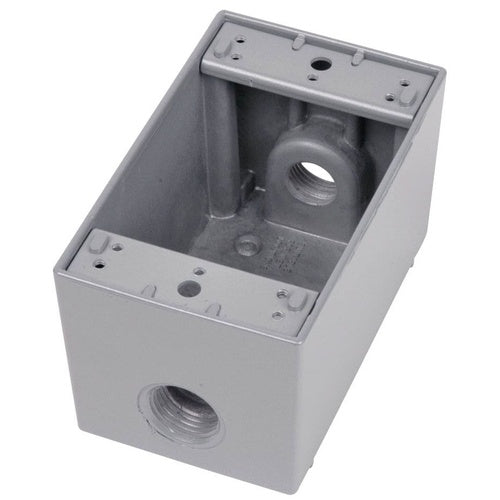

Red Dot IHD3-1 1-Gang Weatherproof Box w/3 1/2" Hubs

Overview

Red Dot IHD3-1 1-Gang Weatherproof Box w/3 1/2" Hubs

Product Specifications

• UPC: 04226939327
• Number Of Hubs: 3
• Hub Location: (1) Back, (1) Each End
• Hub Size: 1/2 Inch
• Material: A380 Die-Cast Aluminum Alloy
• Color: Silver
• Finish: Powder Coated
• Mounting: Surface
• Mounting Hardware: Lug
• Approval: UL, CSA
• Additional Information: Enclosure Rating NEMA 3R; Includes (2) Closure Plug, Ground Screw; Application Dry-Tite Box and Cover Protect Wiring Device, Switch, Electronic Component and Terminal Block, Damp Location, Dry Location, Wet Location; Applicable Standard Federal Specificat
• Catalog Number: IHD3-1
• Brand Name: Dry-tite[R]
• Type: Universal
• Height: 4-9/16 Inch
• Width: 2-13/16 Inch
• Depth: 2-5/8 Inch
• Capacity: 24.8 Cubic Inch
• Number Of Gangs: 1
• Catalog Description: SINGLE GANG DEEP UNIVERSAL WEATHERPROOF BOX, 25.5 CUBIC INCHES, 2-5/8 INCHES DEEP, HUB SIZE 1/2 INCH, SILVER, ALUMINUM ALLOY, 3 OUTLETS, ONE ON TOP, BOTTOM, AND BACK
• Category: Steel Outlet Boxes
• Full Technical Description: Universal Type; A380 Die-Cast Aluminum Alloy Material; Powder Coated Finish; Silver Color; 2-13/16 Inch; 4-9/16 Inch; 2-5/8 Inch; 1/2 Inch Hub Size; 3 Hub(S); 1 Gang(S); UL, CSA Approval; Surface Mounting; 24.8 Cubic Inch Capacity; Lug Mounting Hardware; (1) Back, (1) Each End Hub Location; DRY-TITE[R] Brand; Enclosure Rating NEMA 3R; Includes (2) Closure Plug, Ground Screw; Application Dry-Tite Box and Cover Protect Wiring Device, Switch, Electronic Component and Terminal Block, Damp Location, Dry Location, Wet Location; Applicable Standard Federal Specification W-C-586
• Manufacturer: THOMAS & BETTS RED-DOT
• Manufacturer Brand: T&B Red-Dot
• Sub Category: Weatherproof Device Box
• Unspsc: 39121305
• UPC 12 Digit: 042269393271
• SKU Name: rdot ihd31
