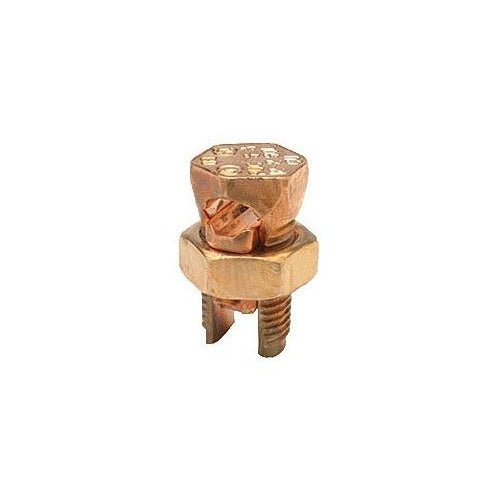

Penn-Union S-4 4-AWG Split Bolt Connector

Overview

Penn-Union S-4 4-AWG Split Bolt Connector

Product Specifications

• Category: Large Terminals & Connectors
• Full Technical Description: High Strength Copper Alloy Material; 8 AWG Solid min. Run Conductor Size; 4 AWG Solid (Copper), (3) 12 AWG Stranded (Copperweld), 8 AWG Type A (Copperweld) Max. Run Conductor Size; 16 AWG Solid min. Tap Conductor Size; 4 AWG Solid (Copper), (3) 12 AWG Stranded (Copperweld), 8 AWG Type A (Copperweld) Max. Tap Conductor Size; Split Bolt Installation; Copper/Copperweld Conductor Material; UL, CSA, RUS Approval; RoHS Compliant; Size 1.05 Inch L X 0.69 Inch W; Torque Rating 165 lb-Inch
• Manufacturer: Penn-Union Corp.
• Manufacturer Brand: Penn-Union Corp.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 785037593182
• SKU Name: s4 pennunion

Resources

• Manufacturer Spec Sheet
