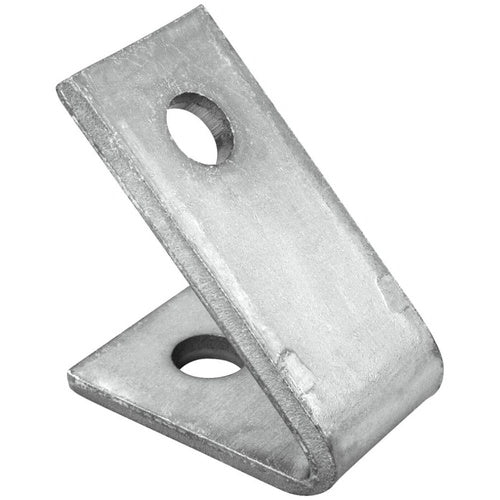

Superstrut AB225EG 2-Hole Closed Angle Fitting Electro-Galvanized Steel

Overview

Superstrut AB225EG 2-Hole Closed Angle Fitting Electro-Galvanized Steel

Product Specifications

• UPC: 61601306292
• Size: 3-1/2 Inch x 2-1/2 Inch
• Material: Carbon Steel
• Process: Hot Rolled
• Finish: SilverGalv
• Thickness: 1/4 Inch
• Used On: Metal Framing System
• Additional Information: Hole Spacing Size (From End) 13/16 Inch, (Center) 1-7/8 Inch
• Catalog Number: AB225EG
• Model: 200
• Type: Closed Angle
• Channel Width: 1-5/8 Inch
• Channel Thickness: 12/14 Gauge
• Bend Angle: 45 Degree
• Number Of Holes: 2
• Hole Size: 9/16 Inch Diameter
• Catalog Description: TWO HOLE STEEL CLOSED ANGLE FITTING WITH SILVERGALV FINISH.
• Category: Channel & Strut Fittings
• Full Technical Description: Closed Angle Type; Carbon Steel Material; 3-1/2 Inch X 2-1/2 Inch Size; Silvergalv Finish; Metal Framing System Used on; 1-5/8 Inch Channel Width; 1/4 Inch Thickness; Hot Rolled Process; 2 Hole(S); 9/16 Inch Diameter Hole Size; 45 Degree Bend Angle; 12/14 Gauge Channel Thickness; SILVERGALV[TM] Brand; Hole Spacing Size (From End) 13/16 Inch, (Center) 1-7/8 Inch; 200 Model
• Made In Usa: Yes
• Manufacturer: THOMAS & BETTS SUPERSTRUT
• Manufacturer Brand: T&B Superstrut
• Sub Category: Channel/Strut Angular Fitting
• Unspsc: 31162502
• UPC 12 Digit: 616013062920
• SKU Name: sstrut ab225eg
