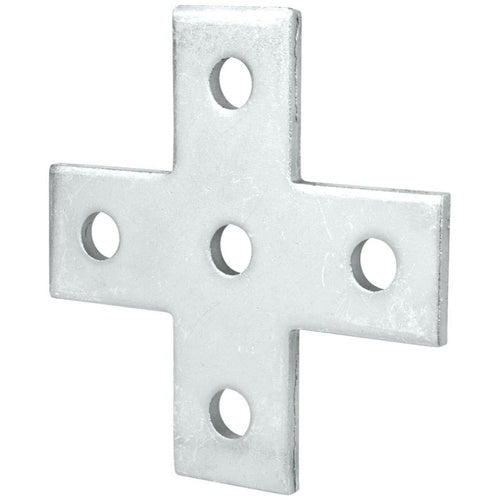

Superstrut AB-253EG 5-Hole Cross Plate Len/W 5-3/8" Electro-Galvanized

Overview

Superstrut AB-253EG 5-Hole Cross Plate Len/W 5-3/8" Electro-Galvanized

Product Specifications

• UPC: 61601302646
• Channel Width: 1-5/8 Inch
• Material: Carbon Steel
• Process: Hot Rolled
• Finish: SilverGalv
• Additional Information: Hole Spacing Size 13/16 Inch (From-End), 1-7/8 Inch (Center); Application Metal Framing
• Catalog Number: AB 253EG
• Model: 200
• Type: Cross
• Number Of Holes: 5
• Hole/Slot Size: 9/16 Inch Diameter
• Length: 5-3/8 Inch
• Width: 5-3/8 Inch
• Thickness: 1/4 Inch
• Catalog Description: PLATE, FIVE HOLE CROSS, LENGTH 5-3/8 INCHES, WIDTH 5-3/8 INCHES, HOLE DIAMETER 9/16 INCHES, ELECTRO-GALVANIZED STEEL
• Category: Channel & Strut Fittings
• Full Technical Description: Cross Type; Carbon Steel Material; Silvergalv Finish; 5-3/8 Inch; 5-3/8 Inch; 1-5/8 Inch Channel Width; 1/4 Inch Thickness; Hot Rolled Process; 5 Hole(S); 9/16 Inch Diameter Hole/Slot Size; SILVERGALV[TM] Brand; Hole Spacing Size 13/16 Inch (From-End), 1-7/8 Inch (Center); Application Metal Framing; 200 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Superstrut
• Sub Category: Channel/Strut Flat Plate
• Unspsc: 31162307
• UPC 12 Digit: 616013026465
• SKU Name: sstrut ab253eg
