Additional Information: RoHS Compliant; Operating Temperature -20 to 105 Deg C; Applicable Standard ANSI C33.84, NFPA 70
Catalog Number: 2201
Type: 45 Degree, Strain Relief
Thread Size: 1/2 Inch
Material: Malleable Iron (Body), Steel (Gland Nut), Neoprene (Bushing)
Cord Size: 0.25 to 0.375 Inch
Size: 1-1/8 Inch Diameter x 1-9/32 Inch Length
Approval: UL 514B, CSA C22.2-18.3
Application: Dry and Wet Location, General Purpose, Machine Building, Maintenance and Repair

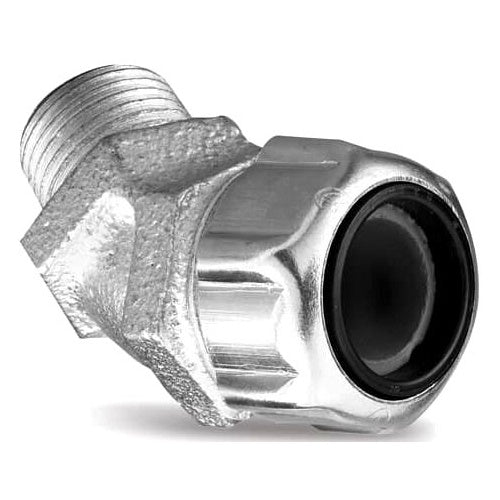

Catalog Description: LIQUIDTIGHT STRAIN RELIEF CORD CONNECTOR, 1/2 INCH, 45 DEGREE BEND, MEETS COAST GUARD CG293, CORD RANGE 0.250 TO 0.375 INCH, MALLEABLE IRON
Category: Cable & Cord Grips
Full Technical Description: 45 Degree, Strain Relief Type; Malleable Iron (Body), Steel (Gland Nut), Neoprene (Bushing) Material; 1-1/8 Inch Diameter X 1-9/32 Inch Length Size; UL 514B, CSA C22.2-18.3 Approval; Dry and Wet Location, General Purpose, Machine Building, Maintenance and Repair Application; 1/2 Inch Thread Size; 0.25 to 0.375 Inch Cord Size; RoHS Compliant; Operating Temperature -20 to 105 Deg C; Applicable Standard ANSI C33.84, NFPA 70
