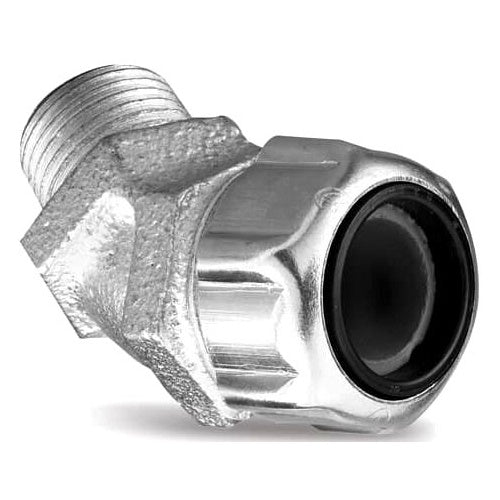

T&B 2205 1/2" 45D Liquidtight Cord Connector .625-.750

Overview

T&B 2205 1/2" 45D Liquidtight Cord Connector .625-.750

Product Specifications

• UPC: 78621002205
• Application: Dry/Hazardous/Wet Location
• Additional Information: Construction Feature Watertight; Operating Temperature 105 Deg C
• Catalog Number: 2205
• Model: 2200
• Type: 45 Deg
• Thread Size: 1/2 Inch
• Material: Malleable Iron Body, Steel Gland Nut, Neoprene Bushing
• Cord Size: 0.625 to 0.75 Inch
• Size: 1-3/8 Inch Dia x 1-13/32 Inch L
• Approval: UL, CSA
• Catalog Description: LIQUIDTIGHT STRAIN RELIEF CORD CONNECTOR, 1/2 INCH, 45 DEGREE BEND, MEETS COAST GUARD CG293, CORD RANGE 0.625 TO 0.750 INCH, MALLEABLE IRON.
• Category: Cable & Cord Grips
• Full Technical Description: 45 Deg Type; Malleable Iron Body, Steel Gland Nut, Neoprene Bushing Material; 1-3/8 Inch Dia X 1-13/32 Inch L Size; UL, CSA Approval; Dry/Hazardous/Wet Location Application; 1/2 Inch Thread Size; 0.625 to 0.75 Inch Cord Size; Construction Feature Watertight; Operating Temperature 105 Deg C; 2200 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210022055
• SKU Name: t&b 2205

Resources

• Manufacturer Spec Sheet
