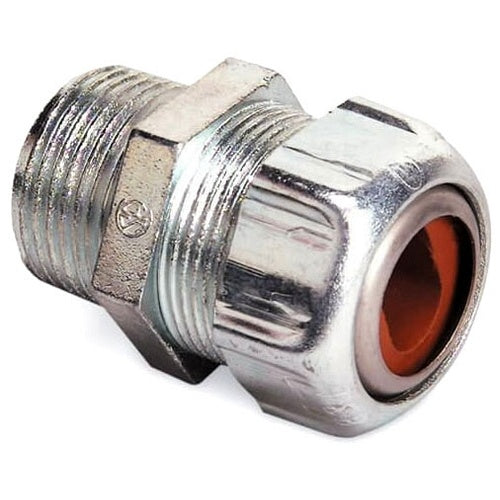

T&B 2232 3/4" Watertight Connector .260X.5-.385X.6

Overview

T&B 2232 3/4" Watertight Connector .260X.5-.385X.6

Product Specifications

• UPC: 78621002232
• Approval: UL, CSA
• Used On: Oval Service Entrance Cable
• Catalog Number: 2232
• Model: 2200
• Type: Gland, Tapered Thread
• Minimum Opening: 0.26 Inch x 0.5 Inch
• Maximum Opening: 0.385 Inch x 0.6 Inch
• Trade Size: 3/4 Inch
• Constructional Feature: Watertight, Oil Resistant, Sunlight Resistant
• Material: Die-Cast Zinc Body, Zinc Electroplated Chromate Coated Steel Gland, Passivated Stainless Steel Retaining Ring, Molded Neoprene Bushing
• Catalog Description: WATERTIGHT CONNECTOR FOR OVAL CABLE, HUB SIZE 3/4 INCH, DIE CAST ZINC BODY WITH NEOPRENE BUSHING, OVAL CABLE RANGE MAXIMUM .385 X .600 INCH, MINIMUM .260 X .500 INCH.
• Category: Service Entrance Cable Fittings
• Full Technical Description: Gland, Tapered Thread Type; Die-Cast Zinc Body, Zinc Electroplated Chromate Coated Steel Gland, Passivated Stainless Steel Retaining Ring, Molded Neoprene Bushing Material; Oval Service Entrance Cable Used on; 0.26 Inch X 0.5 Inch min. Opening; 0.385 Inch X 0.6 Inch Max. Opening; UL, CSA Approval; 3/4 Inch Trade Size; Watertight, Oil Resistant, Sunlight Resistant; 2200 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Service Entrance Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210022321
• SKU Name: t&b 2232

Resources

• Manufacturer Spec Sheet
