Additional Information: Construction Feature Watertight; Operating Temperature 105 Deg C
Catalog Number: 2255
Model: 2200
Type: 90 Deg
Thread Size: 1 Inch
Material: Malleable Iron Body, Steel Gland Nut, Neoprene Bushing
Cord Size: 0.5 to 0.625 Inch
Size: 1-3/8 Inch Dia
Approval: UL, CSA

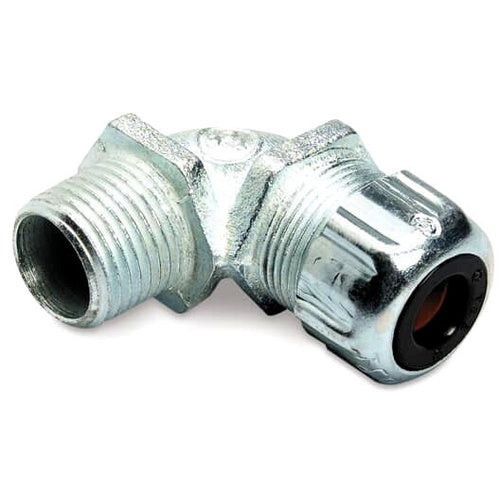

Catalog Description: LIQUIDTIGHT STRAIN RELIEF CORD CONNECTOR, 1 INCH, 90 DEGREE BEND, MEETS COAST GUARD CG293, CORD RANGE 0.500 TO 0.625 INCH, MALLEABLE IRON
Category: Cable & Cord Grips
Full Technical Description: 90 Deg Type; Malleable Iron Body, Steel Gland Nut, Neoprene Bushing Material; 1-3/8 Inch Dia Size; UL, CSA Approval; Dry/Hazardous/Wet Location Application; 1 Inch Thread Size; 0.5 to 0.625 Inch Cord Size; Construction Feature Watertight; Operating Temperature 105 Deg C; 2200 Model
