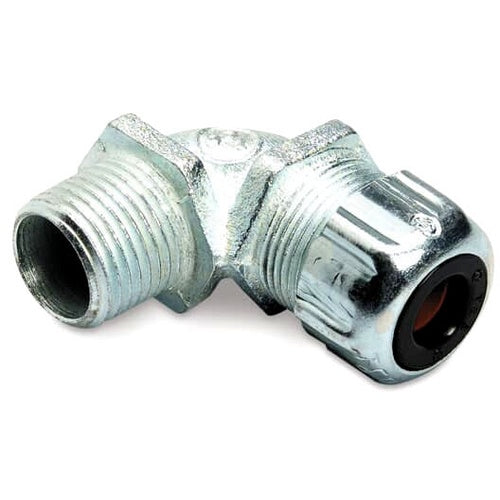

T&B 2257 1" 90D Liquidtight Cord Connector .880-1.065

Overview

T&B 2257 1" 90D Liquidtight Cord Connector .880-1.065

Product Specifications

• UPC: 78621002257
• Application: Dry/Hazardous/Wet Location
• Additional Information: Construction Feature Watertight; Operating Temperature 105 Deg C
• Catalog Number: 2257
• Model: 2200
• Type: 90 Deg
• Thread Size: 1 Inch
• Material: Malleable Iron Body, Steel Gland Nut, Neoprene Bushing
• Cord Size: 0.88 to 1.065 Inch
• Size: 2-1/16 Inch Dia
• Approval: UL, CSA
• Catalog Description: LIQUIDTIGHT STRAIN RELIEF CORD CONNECTOR, 1 INCH, 90 DEGREE BEND, MEETS COAST GUARD CG293, CORD RANGE 0.880 TO 1.065 INCH, MALLEABLE IRON.
• Category: Cable & Cord Grips
• Full Technical Description: 90 Deg Type; Malleable Iron Body, Steel Gland Nut, Neoprene Bushing Material; 2-1/16 Inch Dia Size; UL, CSA Approval; Dry/Hazardous/Wet Location Application; 1 Inch Thread Size; 0.88 to 1.065 Inch Cord Size; Construction Feature Watertight; Operating Temperature 105 Deg C; 2200 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210022574
• SKU Name: t&b 2257

Resources

• Manufacturer Spec Sheet
