Additional Information: RoHS Compliant; Operating Temperature -20 to 105 Deg C; Applicable Standard ANSI C33.84, NFPA 70
Catalog Number: 2278
Type: 90 Degree, Strain Relief
Thread Size: 1-1/4 Inch
Material: Malleable Iron (Body), Steel (Gland Nut), Neoprene (Bushing)
Cord Size: 1.065 to 1.205 Inch
Size: 2-1/16 Inch Diameter
Approval: UL 514B, CSA C22.2-18.3
Application: Dry and Wet Location, General Purpose, Machine Building, Maintenance and Repair

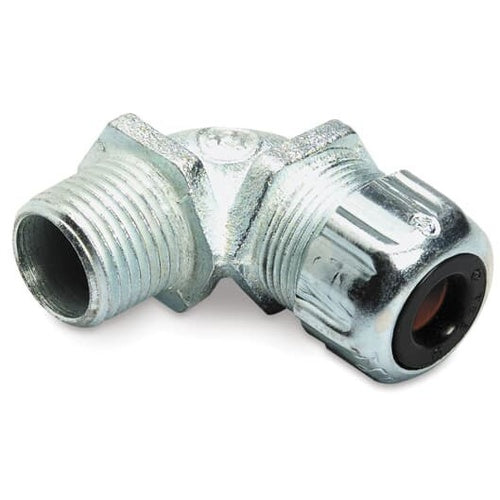

Catalog Description: LIQUIDTIGHT STRAIN RELIEF CORD CONNECTOR, 1-1/4 INCH, 90 DEGREE BEND, MEETS COAST GUARD CG293, CORD RANGE 1.065 TO 1.205 INCH, MALLEABLE IRON
Category: Cable & Cord Grips
Full Technical Description: 90 Degree, Strain Relief Type; Malleable Iron (Body), Steel (Gland Nut), Neoprene (Bushing) Material; 2-1/16 Inch Diameter Size; UL 514B, CSA C22.2-18.3 Approval; Dry and Wet Location, General Purpose, Machine Building, Maintenance and Repair Application; 1-1/4 Inch Thread Size; 1.065 to 1.205 Inch Cord Size; RoHS Compliant; Operating Temperature -20 to 105 Deg C; Applicable Standard ANSI C33.84, NFPA 70
