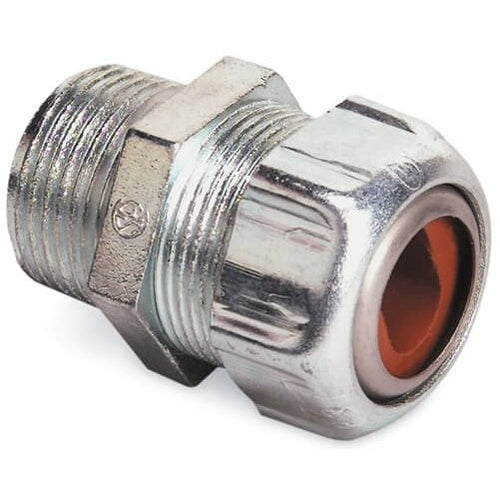

T&B 2442 1-1/4" Watertight Connector .5X.85-.63X.975

Overview

T&B 2442 1-1/4" Watertight Connector .5X.85-.63X.975

Product Specifications

• UPC: 78621002442
• Used On: Oval Service Entrance Cable
• Catalog Number: 2442
• Type: Gland, Tapered Thread
• Minimum Opening: 0.51 Inch x 0.85 Inch
• Maximum Opening: 0.635 Inch x 0.975 Inch
• Trade Size: 1-1/4 Inch
• Constructional Feature: Watertight, Oil Resistant, Sunlight Resistant
• Material: Die-Cast Zinc Body, Zinc Electroplated Chromate Coated Steel Gland, Passivated Stainless Steel Retaining Ring, Molded Neoprene Bushing
• Approval: UL, CSA
• Catalog Description: WATERTIGHT CONNECTOR FOR OVAL CABLE, HUB SIZE 1 1/4 INCH, DIE CAST ZINC BODY WITH NEOPRENE BUSHING, OVAL CABLE RANGE MAXIMUM .635 X .975 INCH, MINIMUM .510 X .850 INCH
• Category: Service Entrance Cable Fittings
• Full Technical Description: Gland, Tapered Thread Type; Die-Cast Zinc Body, Zinc Electroplated Chromate Coated Steel Gland, Passivated Stainless Steel Retaining Ring, Molded Neoprene Bushing Material; Oval Service Entrance Cable Used on; 0.51 Inch X 0.85 Inch min. Opening; 0.635 Inch X 0.975 Inch Max. Opening; UL, CSA Approval; 1-1/4 Inch Trade Size; Watertight, Oil Resistant, Sunlight Resistant
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Service Entrance Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210024424
• SKU Name: t&b 2442

Resources

• Manufacturer Spec Sheet
