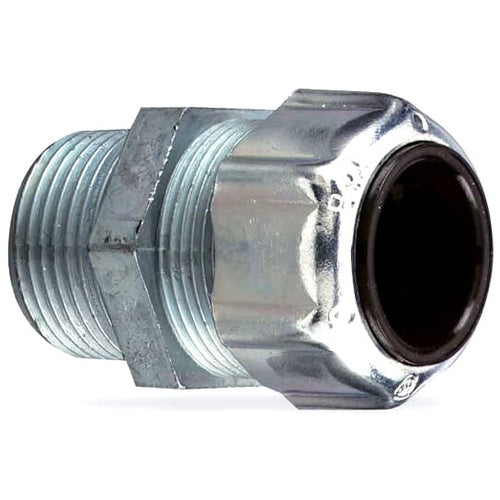

T&B 2525 1/2" Cord Connector .625-.750 Range

Overview

T&B 2525 1/2" Cord Connector .625-.750 Range

Product Specifications

• UPC: 78621002525
• Application: Dry/Wet/Hazardous Location
• Additional Information: Constructional Feature Liquidtight, Strain Relief; Minimum Throat Diameter 5/8 Inch; Temperature Rating 105 Deg C
• Catalog Number: 2525
• Brand Name: T&B
• Type: Straight Male
• Thread Size: 1/2 Inch
• Material: Die-Cast Zinc (Body), Steel (Gland Nut), Neoprene (Bushing)
• Cord Size: 0.625 to 0.75 Inch
• Size: 1-3/8 Inch Diameter x 1-3/4 Inch Length
• Approval: UL, CSA
• Catalog Description: LIQUIDTIGHT STRAIN RELIEF CORD CONNECTOR, 1/2 INCH, STRAIGHT, CORD RANGE 0.625 TO 0.750 INCH, DIE CAST ZINC
• Category: Cable & Cord Grips
• Full Technical Description: Straight Male Type; Die-Cast Zinc (Body), Steel (Gland Nut), Neoprene (Bushing) Material; 1-3/8 Inch Diameter X 1-3/4 Inch Length Size; UL, CSA Approval; Dry/Wet/Hazardous Location Application; 1/2 Inch Thread Size; 0.625 to 0.75 Inch Cord Size; Constructional Feature Liquidtight, Strain Relief; Minimum Throat Diameter 5/8 Inch; Temperature Rating 105 Deg C
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210025254
• SKU Name: t&b 2525

Resources

• Manufacturer Spec Sheet
