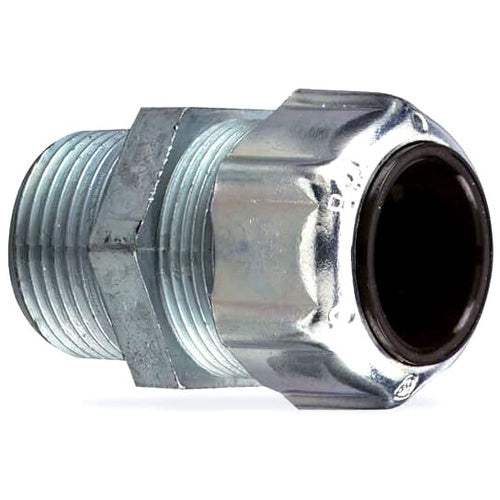

T&B 2563 1-1/2" Straight Liquidtight Cord Connector 1.00-1.187

Overview

T&B 2563 1-1/2" Straight Liquidtight Cord Connector 1.00-1.187

Product Specifications

• UPC: 78621002563
• Application: Dry/Wet/Hazardous Location
• Additional Information: Constructional Feature Liquidtight, Water Tight, Strain Relief; Color Metallic; Throat Diameter 1-7/16 Inch; Temperature Rating 105 Deg C
• Catalog Number: 2563
• Brand Name: T&B
• Type: Straight Male
• Thread Size: 1-1/2 Inch
• Material: Die-Cast Zinc (Body), Steel (Gland Nut), Neoprene (Bushing)
• Cord Size: 1 to 1.187 Inch
• Size: 2-5/16 Inch Diameter x 2-7/16 Inch Length
• Approval: UL, CSA
• Catalog Description: LIQUIDTIGHT STRAIN RELIEF CORD CONNECTOR, 1-1/2 INCH, STRAIGHT, CORD RANGE 1.000 TO 1.187 INCH, DIE CAST ZINC
• Category: Cable & Cord Grips
• Full Technical Description: Straight Male Type; Die-Cast Zinc (Body), Steel (Gland Nut), Neoprene (Bushing) Material; 2-5/16 Inch Diameter X 2-7/16 Inch Length Size; UL, CSA Approval; Dry/Wet/Hazardous Location Application; 1-1/2 Inch Thread Size; 1 to 1.187 Inch Cord Size; Constructional Feature Liquidtight, Water Tight, Strain Relief; Color Metallic; Throat Diameter 1-7/16 Inch; Temperature Rating 105 Deg C
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210025636
• SKU Name: t&b 2563

Resources

• Manufacturer Spec Sheet
