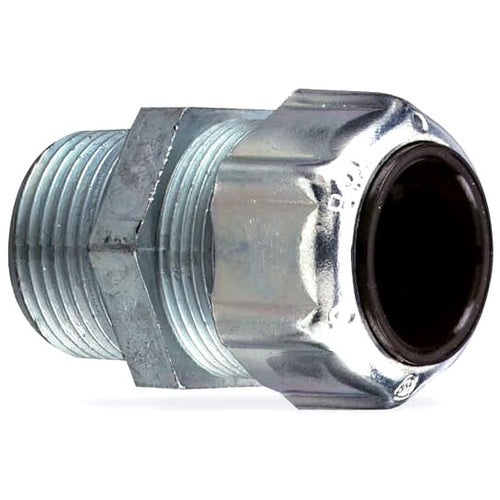

T&B 2576 Malleable Iron Strain Relief Connector

Overview

T&B 2576 Malleable Iron Strain Relief Connector

Product Specifications

• UPC: 78621002576
• Application: Dry/Wet/Hazardous Location
• Additional Information: Constructional Feature Liquidtight, Water Tight, Strain Relief; Color Metallic; Throat Diameter 1-29/32 Inch; Temperature Rating 105 Deg C
• Catalog Number: 2576
• Brand Name: T&B
• Type: Straight Male
• Thread Size: 2 Inch
• Material: Malleable Iron (Body), Steel (Gland Nut), Neoprene (Bushing)
• Cord Size: 1.75 to 1.965 Inch
• Size: 3-7/32 Inch Diameter x 3-1/2 Inch Length
• Approval: UL, CSA
• Catalog Description: LIQUIDTIGHT STRAIN RELIEF CORD CONNECTOR, 2 INCH, STRAIGHT, CORD RANGE 1.750 TO 1.965 INCH, MALLEABLE IRON
• Category: Cable & Cord Grips
• Full Technical Description: Straight Male Type; Malleable Iron (Body), Steel (Gland Nut), Neoprene (Bushing) Material; 3-7/32 Inch Diameter X 3-1/2 Inch Length Size; UL, CSA Approval; Dry/Wet/Hazardous Location Application; 2 Inch Thread Size; 1.75 to 1.965 Inch Cord Size; Constructional Feature Liquidtight, Water Tight, Strain Relief; Color Metallic; Throat Diameter 1-29/32 Inch; Temperature Rating 105 Deg C
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210025766
• SKU Name: t&b 2576
