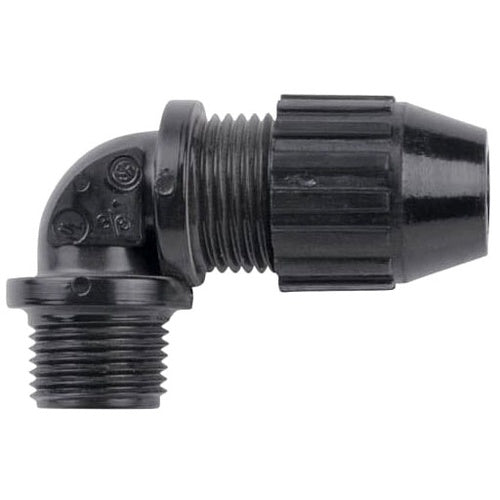

T&B 2685 1" 90D Liquidtight Cord Connector .66-.78 Nylon

Overview

T&B 2685 1" 90D Liquidtight Cord Connector .66-.78 Nylon

Product Specifications

• UPC: 78621002685
• Application: Dry and Wet Location, General Purpose, Machine Building, Maintenance and Repair
• Additional Information: RoHS Compliant; Operating Temperature -34 to 105 Deg C; Applicable Standard ANSI C33.84, NFPA 70
• Catalog Number: 2685
• Brand Name: Black Beauty[R]
• Type: 90 Degree, Strain Relief
• Thread Size: 1 Inch
• Material: Black Nylon (Body), Thermoplastic (Gland and Segmented Chuck), Neoprene (Bushing)
• Cord Size: 0.66 to 0.78 Inch
• Size: 1-27/32 Inch Diameter
• Approval: UL 514B, CSA C22.1/C22.2-18.3
• Catalog Description: LIQUIDTIGHT CORD CONNECTOR, 1 INCH, 90 DEGREE BEND, CORD RANGE 0.660 TO 0.780 INCH, MEETS COAST GUARD CG293, NYLON, BLACK
• Category: Cable & Cord Grips
• Full Technical Description: 90 Degree, Strain Relief Type; Black Nylon (Body), Thermoplastic (Gland and Segmented Chuck), Neoprene (Bushing) Material; 1-27/32 Inch Diameter Size; UL 514B, CSA C22.1/C22.2-18.3 Approval; Dry and Wet Location, General Purpose, Machine Building, Maintenance and Repair Application; 1 Inch Thread Size; 0.66 to 0.78 Inch Cord Size; Black BEAUTY[R] Brand; RoHS Compliant; Operating Temperature -34 to 105 Deg C; Applicable Standard ANSI C33.84, NFPA 70
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210026855
• SKU Name: t&b 2685

Resources

• Manufacturer Spec Sheet
